2U DMR/NXDN Digital Trunking Repeater

2U

2U DMR Trunking Repeater is designed to deliver superior communication performance, ensuring seamless connectivity for mission-critical operations. Equipped with advanced intelligent channel allocation, real-time monitoring, and robust adaptability, this repeater is the ultimate solution for industries requiring high-efficiency dispatching and reliable voice transmission.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

2U series Professional DMR Repeater is more than just a communication device.

It’s a robust solution designed to meet the diverse needs of industries such as public safety,transportation,utilities, and more.

Its versatility and advanced features make it the perfect choice for organizations seeking dependable and high-performance communication solutions.

✅ Efficient heat dissipation with a large-area aluminum alloy design.
✅ Meets stringent spurious emission and audio distortion standards.
✅ Programming software for PC-based configuration.
✅ Intelligent IP Controller(Optional)

✅ Multiple Communication Standards DMR/NXDN/Analog formats.


■Intelligent Channel Allocation

The trunking system offers a higher call success rate compared to conventional systems with the same number of channels and users, ensuring reliable communication. Alternatively, with the same number of channels and call success rate, the trunking system can accommodate significantly more users (up to twice as many).


■Comprehensive Functionality
The system supports various communication methods, including emergency alerts, group calls, private calls, all calls, priority calls, status calls, short-data calls, and long-data calls. It allows users to be assigned in different priority levels, ensuring that critical users have the highest communication reliability.
The dispatch console also supports features such as GPS positioning, voice recording, remote stun, remote kill, and remote activation.


■Fast Connection and Strong Fault Tolerance
The communication base station operates with dynamic operation, where any repeater unit can serve as a control unit. If the current control unit fails, another repeater unit can take over, ensuring the base station remains fully operational.

■Real-Time Monitoring
The system continuously monitors the operating status of each channel repeater, providing users with reliable communication and optimal performance through real-time data. In case of unexpected faults in any repeater, the recorded channel data serves as a valuable reference for troubleshooting.

■Exceptional Adaptability
The system's components are compactly structured, facilitating installation, transportation, and maintenance for everyday communication dispatch. After undergoing various professional assessments and testing in diverse complex environments, it demonstrates excellent pressure resilience and adaptability to meet the emergency communication needs of users in various scenarios.

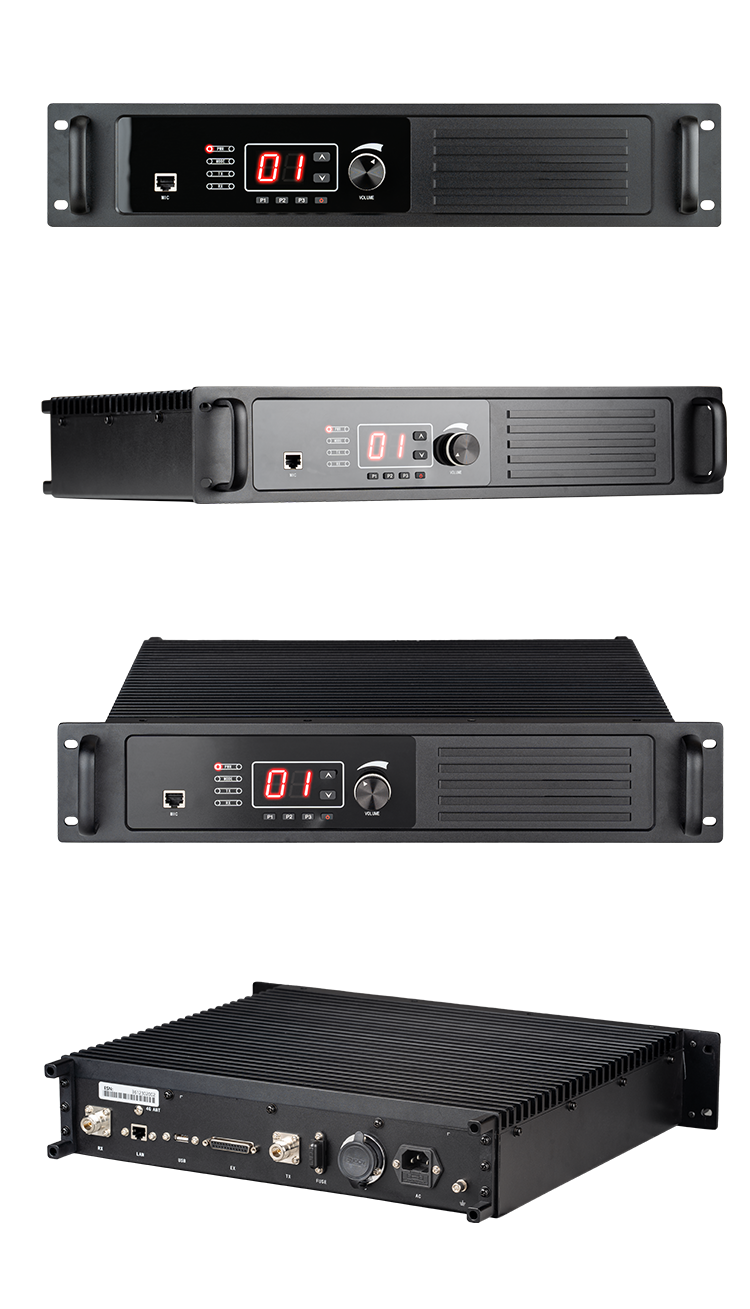

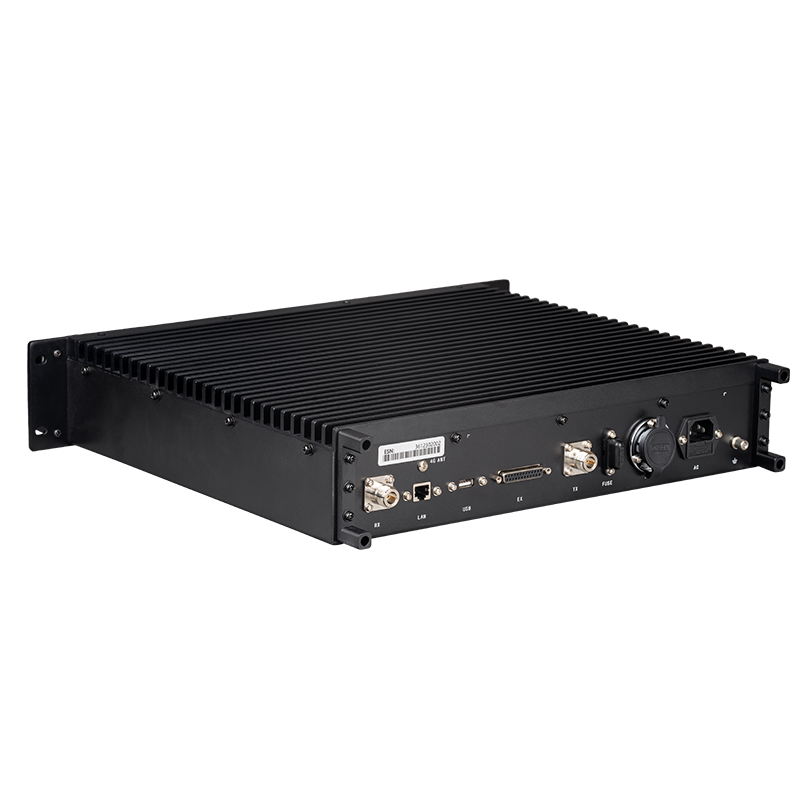

Appearance Introduction

Product Accessories

General
Frequency Range UHF1: 400-470 MHz;
UHF2: 450-520 MHz;
UHF3: 350-400 MHz;
VHF:  136-174 MHz
Channel Capacity 500
Zone Capacity 32(MAX.32channels
each zone)
Dimensions(LxWxH） 420×483×132.5mm
Weight 15Kg
Input power（AC） 110V/220V
Input voltage(DC) 13.6V±15%
Current（Standby） <800mA
Current(Transmit） <11A
Current(Receive） <1900mA
Frequency stability ±0.5ppm
Antenna Impedance 50Ω
Vocoder Type AMBE+2
RF Connect Tx(N)、Rx(N)
display Nixie tube
Trunking Controller
CPU Freescale i.mx6Q 4Core
RAM 1G DDR3
ROM 8G
SD Connector Micro SD，Max 128G
Display Interface 24bit_RGB
USB Connector Mini USB2.0 (OTG)
Network Interface 10/100/1000 Mbps Ethernet
Supported system
types 		DMR Trunking System
DMR Conventional IP
Interconnection System
Conventional Digital /
Analog System
Receiver
Channel Spacing 6.25KHz/12.5KHz/25KHz
Sensitivity
Analog 		0.3μV(12dB SINAD)
0.22μV(typ.) (12dB SINAD)
0.4μV(20dB SINAD)
Sensitivity
Digital 		0.28μV(3%BER@12.5kHz)
0.3μV (3%BER@6.25kHz)
Channel Selective 62dB@6.25kHz
70dB@12.5kHz
75dB@25kHz
Intermodulation 70dB
Block 95dB
Spurious response
suppression 		90dB
Audio Output
power (<5%) 		2.0W / 8Ω
Conducted
emission spurious 		<-57dBm
Transmitter
Output Power 5~50W
Channel Spacing 6.25kHz/12.5kHz/25kHz
Emission Spurious -36dBm(≤1 GHz)
-30dBm(>1 GHz)
FM Modulation 16K0F3E @25kHz
11K0F3E @12.5kHz
4FSK
Digital Modulation 		Only Data:
7K60FXD@12.5kHz
Voice&Data:
7K60FXW@12.5kHz
Only Data:
4K00F1D@6.25kHz
Voice&Data:
4K00F1W@6.25kHz
Audio Distortion ≤3%
Audio Response +1 ~ -3dB
FM Hum & Noise 40dB @12.5KHz
45dB @25KHz
Digital FSK Error <1.5%
Adjacent channel
Power 		≤-60dB @12.5KHz
≤-70dB @25KHz
Adjacent Channel
Transient Power 		≤-50dB @12.5KHz
≤-60dB @25KHz
