Home - Products - Digital Mobile Ad-Hoc Networking Repeater

Digital Mobile Ad-Hoc Networking Repeater

R2000PLUS

The R2000PLUS redefines portable communication with its advanced ad-hoc networking capabilities, delivering seamless connectivity in the most demanding environments. Engineered for versatility, it supports wired, wireless, and hybrid network configurations with ultra-low latency (≤0.5s delay after 4 hops), ensuring real-time coordination. Built to endure, its CNC-machined aluminum alloy body features an anodized finish for superior corrosion resistance, while IP67-rated aviation ports and a protective frame guarantee reliability in harsh conditions. The compact design accommodates both portable and fixed setups, powered by a detachable battery or 45W external source. Equipped with a 2.2-inch TFT LCD for intuitive control, integrated 4G/5G modules, and a high-gain 5.5dBi antenna, the R2000Plus is the ultimate solution for mission-critical communications.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories


User-friendly Controls

Equipped with a 2.2-inch

TFT LCD display and a set of

navigation buttons,

it enables a wide range of

functional operations.


Compact Design,

Easy to Carry

.

Portable Usage:

Features a detachable

battery for easy carrying and mobility.

·Fixed Installation:

Connects to an external power source,

supporting up to 45W of power.


Rugged Design,

Maximized Reliability

·Robust Structure:

Built in CNC-machined aluminum alloy.

.Durable Finish:

Anodized for corrosion and wear resistance.

.Weather-Proof:

Aviation-grade connecting ports

with IP67-rated rain-resistant body design.

.Protective Frame:

Shields interfaces,panels,and the body.


Rich Features

to Meet Various Needs

·Flexible Networking:

Supports wired,wireless,

and hybrid network configurations.

·Low Latency:

Maintains≤0.5s delay after up to 4 cascading hops.

·Integrated Connectivity:

Built-in 4C LTE/5C modules.

.User-Friendly Power Supply:

Removable battery with low power alerts.

·High-Performance Antenna:

Equipped with a 1-meter long single

three-section whip antenna for 5.5dBi gain.

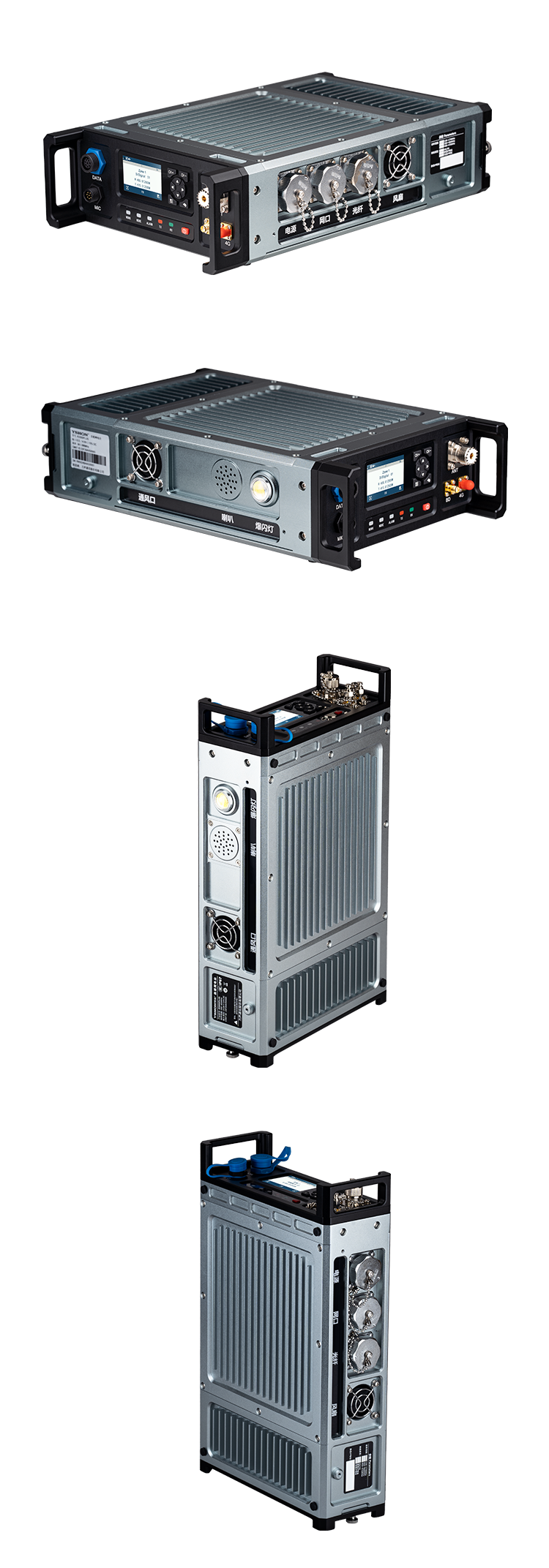

Appearance Introduction


Product Accessories

  • Microphone

    Microphone

  • AC Adaptor

    AC Adaptor

  • Programing Cable

    Programing Cable

  • Antenna

    Antenna

  • Beidou/GPS（posioning module）

    Beidou/GPS（posioning module）

General
Antenna Impedance 50Ω
Channel Capacity 500
Frequency Range 136-174MHz,350-400MHz,400-470MHz,450-520MHz
Ingress Protection(IP)Rating IP67
Channel Spacing 12.5KHz / 25KHz
Dimension(W*D*L) 189*119*300mm(W×H×L)
Work Voltage Rated:13.6V DC Range:12-16.8V Adaptor AC:220V 50Hz
Type Analog: DQT/CTCSS/DTMF; Digital: DMR
Weight ≤4.5kg
LCD 2.2-inch
Positioning Beidou / GPS
Battery Life ≥ 20 Hours
Transmitter
TX Power 10W/25W
Frequency Stability ±0.5ppm
Conducted Radiated Spurious Emission -36dBm@<1GHz
-30dBm@>1GHz
FSK Error ＜2%
Adjacent Channel Power ≤-60dB @12.5KHz
≤-70dB @25KHz

Adjacent Channel Transient Power

≤-50dB @12.5KHz
≤-60dB @25KHz
4FSK Digital Modulation 12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
Frequency response +1dB, -3dB


Receiver
Frequency Stability ± 0.5 ppm
Sensitivity Analog:≤0.22uV (@12dB Sinad)
Digital:≤0.22uV(5% BER)
Frequency Selective ≥70dB@25kHz
≥60dB@12.5kHz
Intermodulation 65dB
Spurious suppression 70dB
Block 90dB
Audio Frequency Response +1dB, -3dB
Others
Power Supply Detachable battery pack or 220V AC power supply  through adapter
Standard Accessory Microphone, Programming,Cable, etc.
Output Voltage 12-16.8V DC
Operating Temperature -30℃ - +60℃
Battery Pack Capacity (Ah) ≥15 Ah
Main Materials The main unit is made of high-strength aluminum alloy and
high-strength engineering plastics

Product accessories

  • Microphone

    Microphone

  • AC Adaptor

    AC Adaptor

  • Programing Cable

    Programing Cable

  • Antenna

    Antenna

  • Beidou/GPS（posioning module）

    Beidou/GPS（posioning module）
