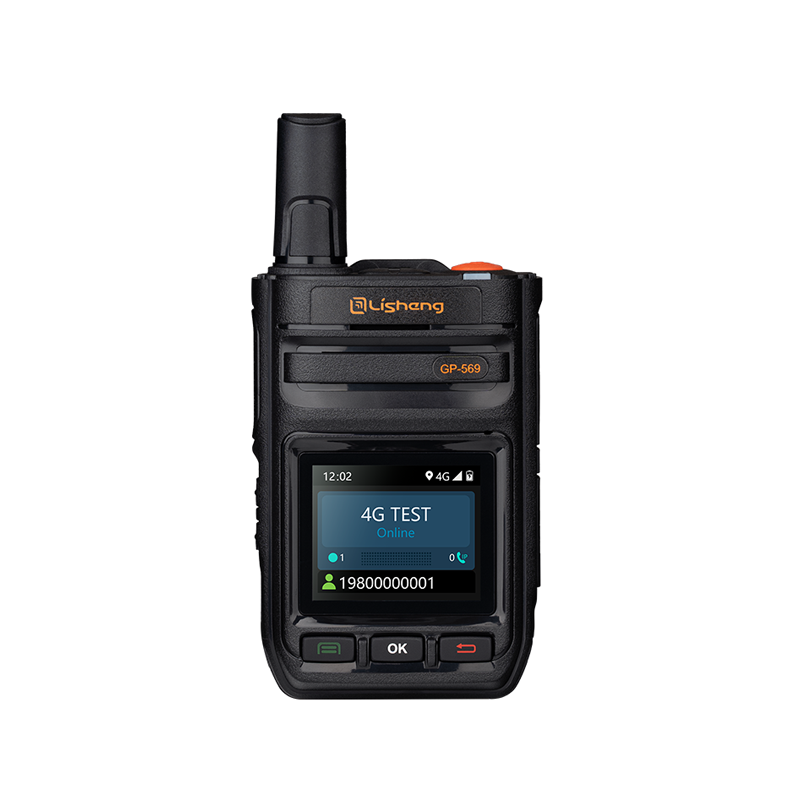

GP-569 Mini Pocket Broadband Radio
GP-569
The GP 569 is a highly compact, durable, and user-friendly push-to-talk radio that supports 4G/LTE and Wi-Fi connectivity for seamless wide-area communication. Offering excellent value, it packs an impressive set of features at an affordable price. Its lightweight and portable design allows for effortless one-handed operation and flexible carry options—whether in your pocket, on a belt clip, or with a lanyard.
Product Orientation Map
Features
Specifications
Accessories
Push to talk over cellular, support CDMA/GSM/WCDMA/LTE
Depend on powerful cellular, you could receive the call anytime, anywhere, and makes the communication seamless and efficient
Mini Size
Small and easy to carry, very flexible using in multiple places.
GPS/Glonass/Beidou navigation
Using traditional trunking solution would occur high cost, the GPS function in R68D supply you high efficiency in trunking, also improved productivity of the assignment can now be done based on the location by console.
Functional dispatching system
The Dispatch Console allows efficient management to increase productivity
Android operating system
It is Android 5.1.1, more flexible for users to adopt kinds of platform.
WiFi Function
Under WiFi coverage, users can freely choose to use WiFi connect, save cost on network.
Compact & Heavy-duty design
With IP54 design, GP588 can uses in variety environment.
Huge battery capacity
With 3500mAh capacity, GP588 supply you long standby time.
Application:
● Unique for:Security Guard, Construction site, Industry Production site, Commercial use like: Hotel, Hospital, University, Commercial Event; Sports
● Popular for:Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

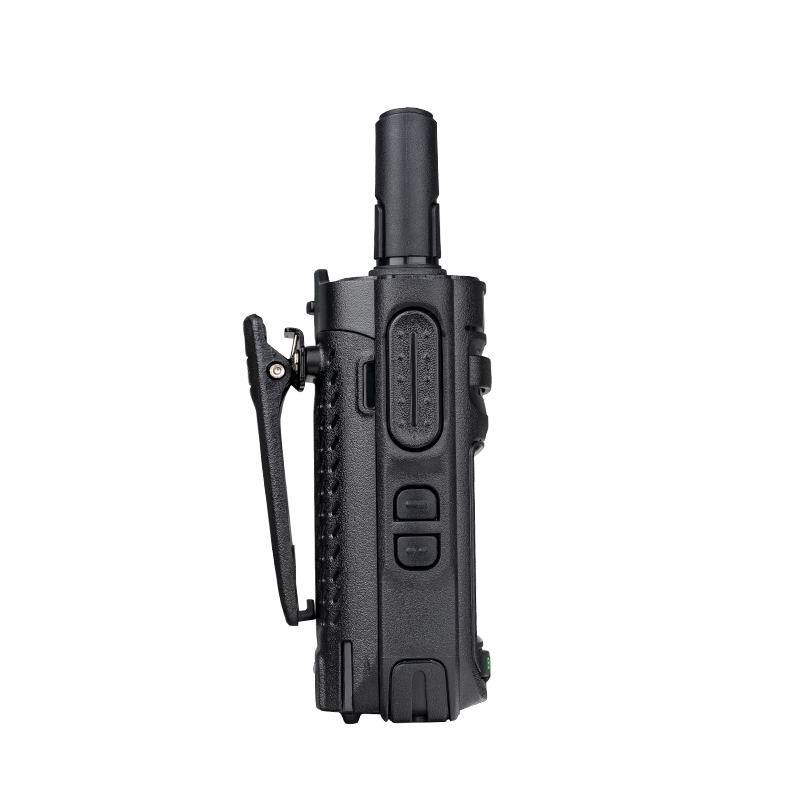

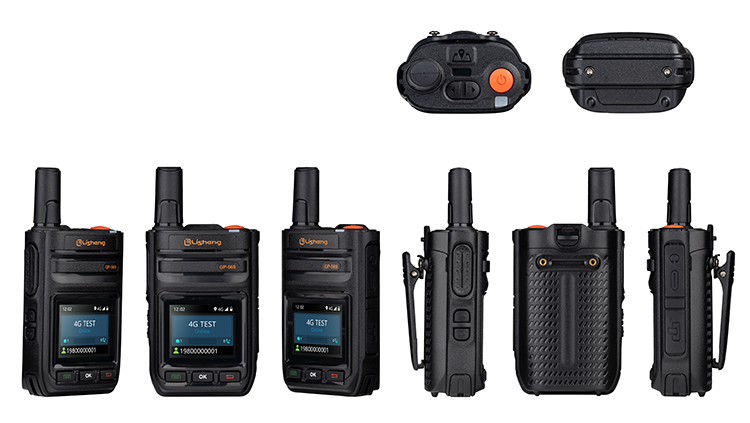

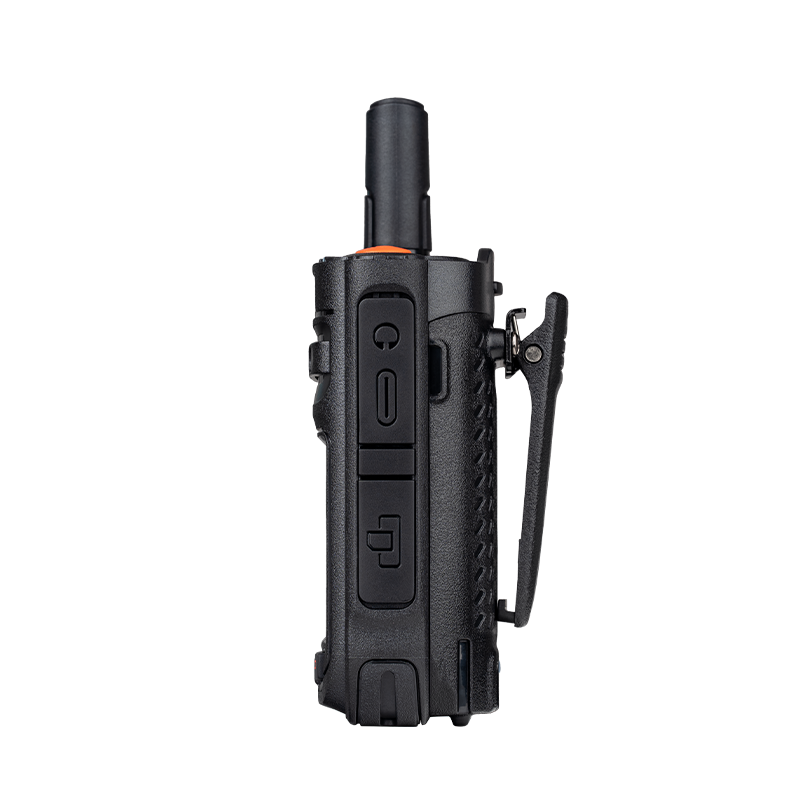

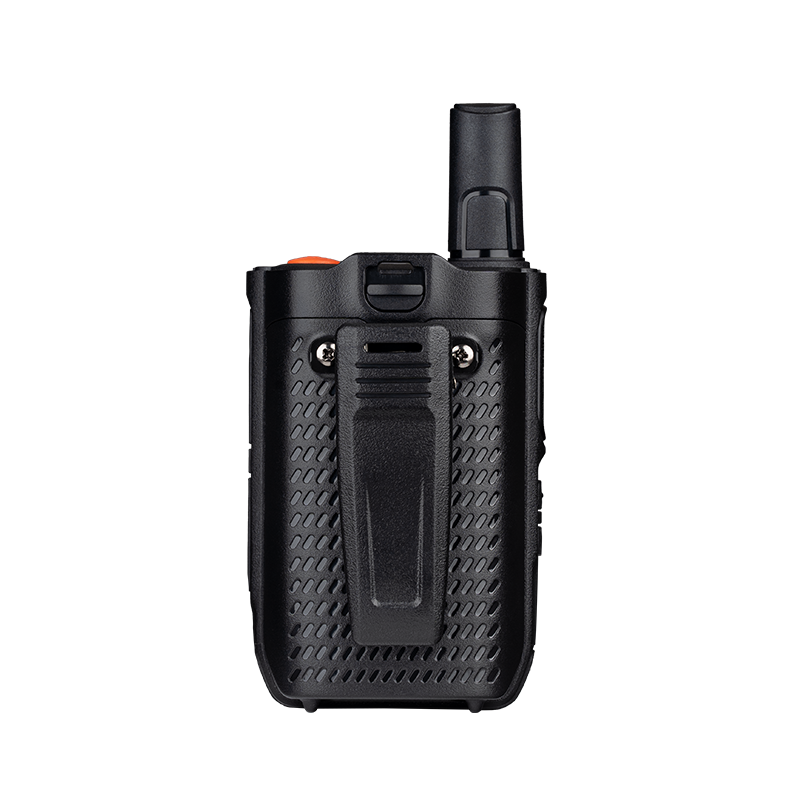

Appearance Introduction
Product Accessories
Hand Strap
Antenna
Charger
Belt Clip
Battery
Item | Description | Remark | ||
Network |
L813 Asia Version |
■GSM:Band2/3/8 ■CDMA:1X BC0 ■CDMA2000:Evdo Rev.A 800MHz ■TD-SCDMA:Band34/39 ■WCDMA:Band1/5/8 ■TDD-LTE:Band38/39/40/41 ■FDD-LTE:Band1/3/5/8 |
Fequency Bands Customizable Upon Request |
|
L811 EU Version |
■GSM: Band2/3/5/8 ■WCDMA: Band1/2/5/8 ■TDD-LTE: Band38/40 ■FDD-LTE: Band1/2/3/5/7/8/20/28 |
|||
L817 (America version) |
■GSM: 850MHz,1900MHz ■WCDMA:Band1/2/4/5/8 ■FDD-LTE: Band1/2/4/5/7/12/13/17/25/26 |
|||
Operation System | Andriod | TDD CAT4, FDD CAT4 | ||
Dimensions | Includes Battery |
125.2mm*61.7mm*38.2mm |
||
Weight | Includes battery and antenna | Around 175g | ||
Display | Size(inch) | 1.77 | ||
Resolution | 160*128(Pixel) | |||
Connectors | Charger | YES | ||
Type-C | Charging & Data transfer |
Charging, Data transmitting |
||
SIM Card | Single card | |||
Battery | Type | Li-polymer | ||
Capacity(mAh) | 4000 | |||
Charger current | 1000mA | |||
Charging Time | ≤ 6 Hours | |||
Memory | ROM | 4GB | ||
RAM | 4Gb LPDDR2 | |||
Sound | MIC | 1 |
|
|
Line-Control earphone |
YES | |||
Speaker | YES | |||
Speaker PA | YES | |||
Bluetooth |
Bluetooth |
YES |
|
|
Wifi | Wifi | YES |
|
|
GPS | GPS | YES |
|
|
Others | Working Temperature | -20℃ ~ 55℃ |
|
|
Ingress Protection (IP) Rating | IP54 | |||
Dropping | 1.2m |
Product accessories
Hand Strap
Antenna
Charger
Belt Clip
Battery
