Features
Specifications
Accessories
Cellular Network Support (4G/LTE/3G/2G)
Leverages a powerful cellular network to ensure you can receive calls anytime and anywhere, making communication seamless and efficient.
Android OS 9.0
Runs on Android OS 9.0, offering flexibility and compatibility with a wide range of applications and platforms.
Fingerprint Screen Lock
Ensures that only authorized users can access the device, protecting sensitive communications and boosting operational efficiency.
4-inch Multi-touch Screen
Features a clear, responsive, and glove-friendly display that enables smooth operation in various environments.
NFC Capability
- NFC Patrol: Ideal for scenarios like staff check-ins, work attendance, and patrols.
Wi-Fi Connectivity
Allows users to connect via Wi-Fi under coverage, reducing network costs and enhancing operational flexibility, especially in indoor or remote settings.
Bluetooth Voice/Data Service (Optional)
Complies with Bluetooth 5.0 standards to support both frequency programming and calling, enhancing the device's versatility and user convenience.
GPS/Beidou/GLONASS Positioning (Optional)
Provides accurate location data through integrated GPS/Beidou/GLONASS systems. When paired with command and dispatch software, it enables real-time mapping of personnel and supports voice communication.
Built-in Voice Recorder
Securely records important conversations for accurate communication, operational efficiency, and compliance with safety and record-keeping requirements.
IP68 Waterproof & Dust-proof Rating
Built to withstand harsh environments, the device is fully protected against dust and water immersion (up to 1.5 meters for 30 minutes), making it ideal for construction sites, outdoor activities, or heavy rain.

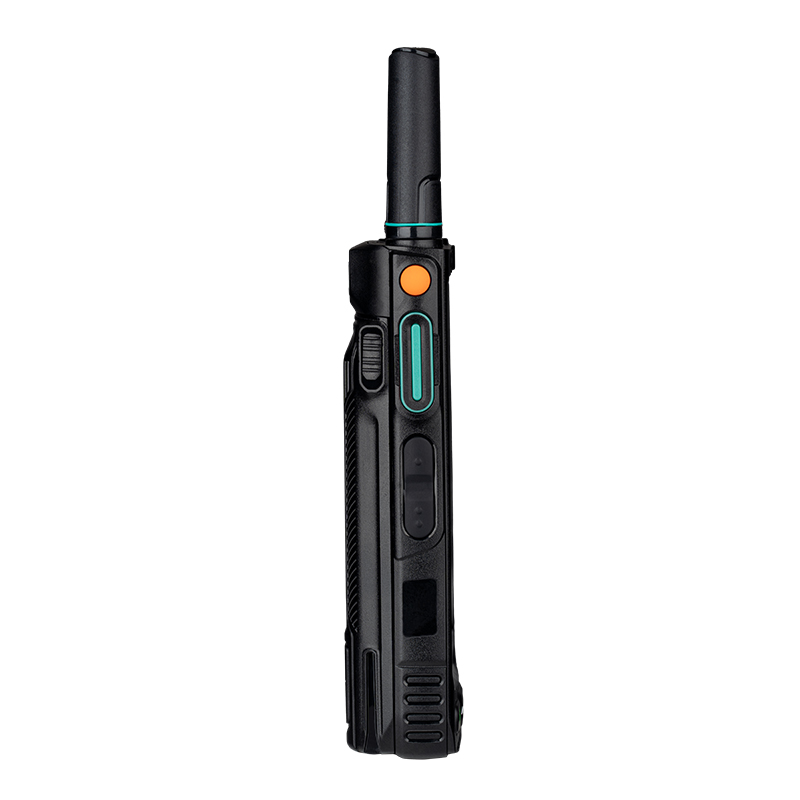

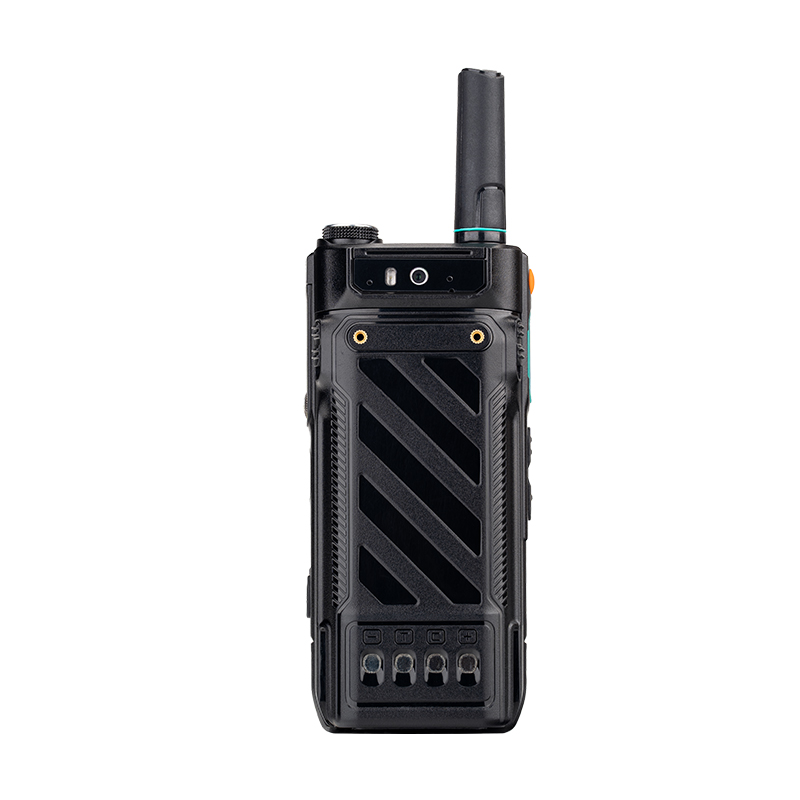

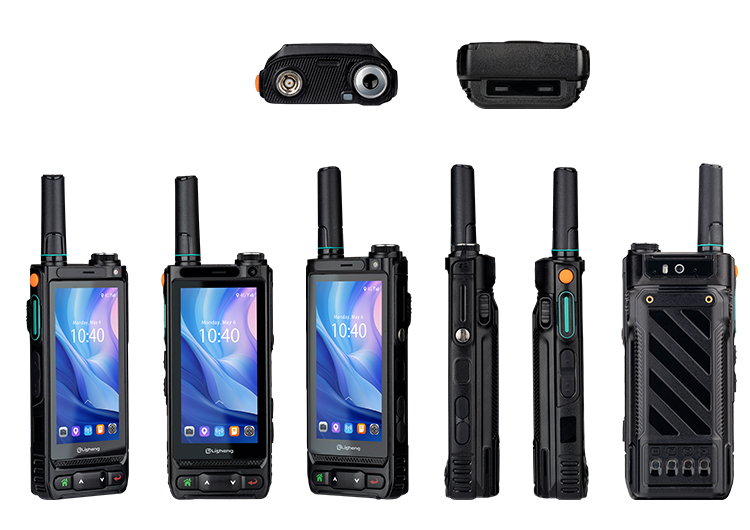

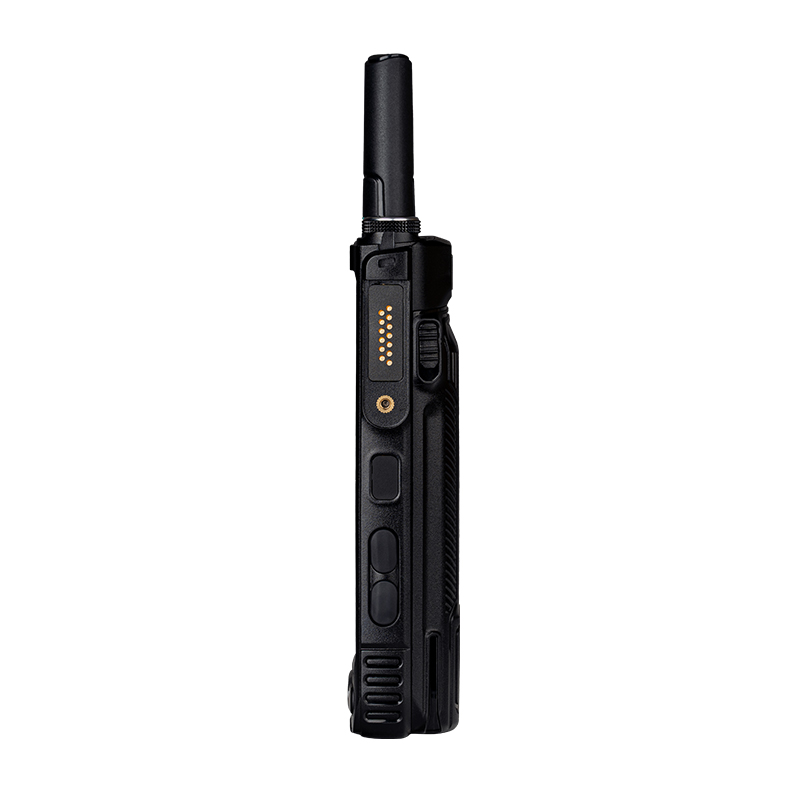

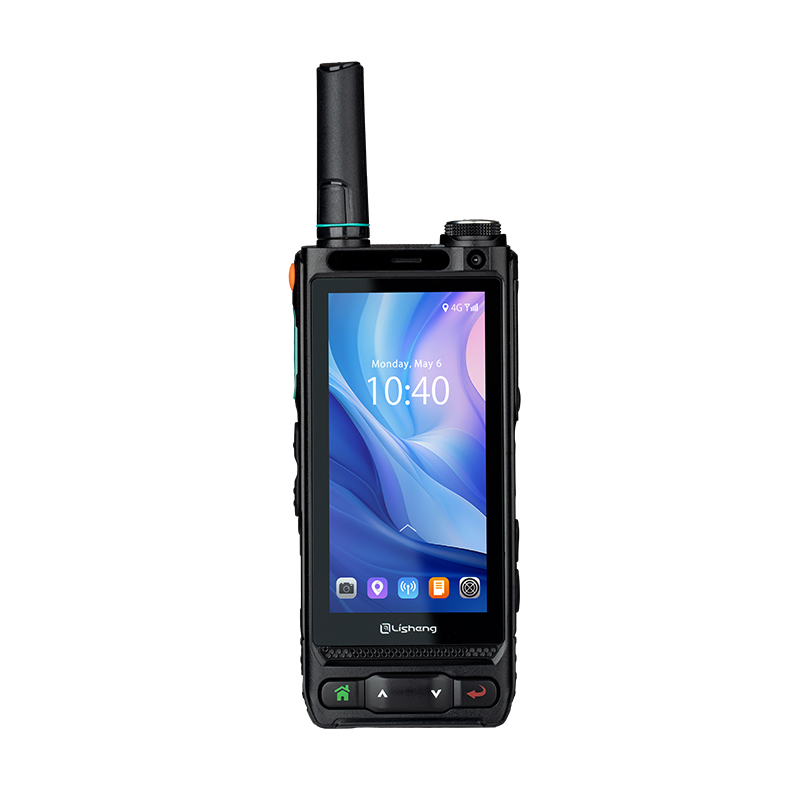

Appearance Introduction
Product Accessories
Antenna
Battery
AC Adaptor
Hand Strap
Details | Remark | ||
Network | Europe / Asia |
■ GSM: B2/3/5/8 ■ WCDMA: B1/2/5/8 ■ TDS: B34/39 ■ FDD: B1/3/5/7/8/20/28A/28B ■ TDD: B38/39/40/41 ■ CDMA2000: 1X/EVDO BCO |
Frequency Bands Customizable Upon Request |
US |
■ GSM: B2/3/5/8 ■ WCDMA: B1/B2/4/5/8 ■ FDD: B2/3/4/5/7/8/12/13/17/28AB/B66 ■ TDD: B38/40 |
||
Operation System | Android 9.0 |
|
|
LCD | Size(inch) | 4.0 TFT IPS | LCD |
Resolution | 540*1080 | ||
Adjustable Backlight | YES | ||
Touch Screen | Multi-Touch | ||
Camera | Rear Camera | 13MP | Camera |
Front Camera | 5MP | ||
Flash Lamp | YES | ||
Connectors | Charger | Support External Charging Pin | Connectors |
USB(M6) | YES | ||
TF Card | SDXC、MicroSD、TF*1、 | ||
SIM Card | Dual SIMS | ||
Headphone Jack(M6) | YES | ||
Battery | Type | Li-polymer |
|
Capacity(mAh) | 4000 |
|
|
Charging Time | ≤ 6 Hours |
|
|
Memory | ROM | 32GB |
|
RAM | 2GB |
|
|
Sound | MIC | 2 |
|
Line-Control earphone | YES |
|
|
Speaker | YES |
|
|
Speaker PA | YES |
|
|
Bluetooth | BT5.0 |
|
|
FM | FM | YES |
|
Fingerprint (optional) | Identification/Collection | YES |
|
Positioning | GPS/BEIDOU/AGPS | YES |
|
Sensor | G-Sensor | YES |
|
Geomagnetic sensor | YES | ||
Gyroscope | YES | ||
L-Sensor | YES | ||
P-Sensor | YES | ||
Motor | Motor | YES |
|
Fingerprint | Identification/Collection | YES |
|
Barometer (Altimeter) | Barometer (Altimeter) | YES |
|
Thermometer and Hygrometer | Thermometer and Hygrometer | YES |
|
Antenna | Main Antenna | YES |
|
Auxiliary Antennna | YES |
|
|
WIFI/BT | YES |
|
|
FM /BD | YES |
|
|
NFC/BD | YES |
|
|
GPS/BD | YES |
|
Product accessories
Antenna
Battery
AC Adaptor
Hand Strap
