Professional Digital Radio

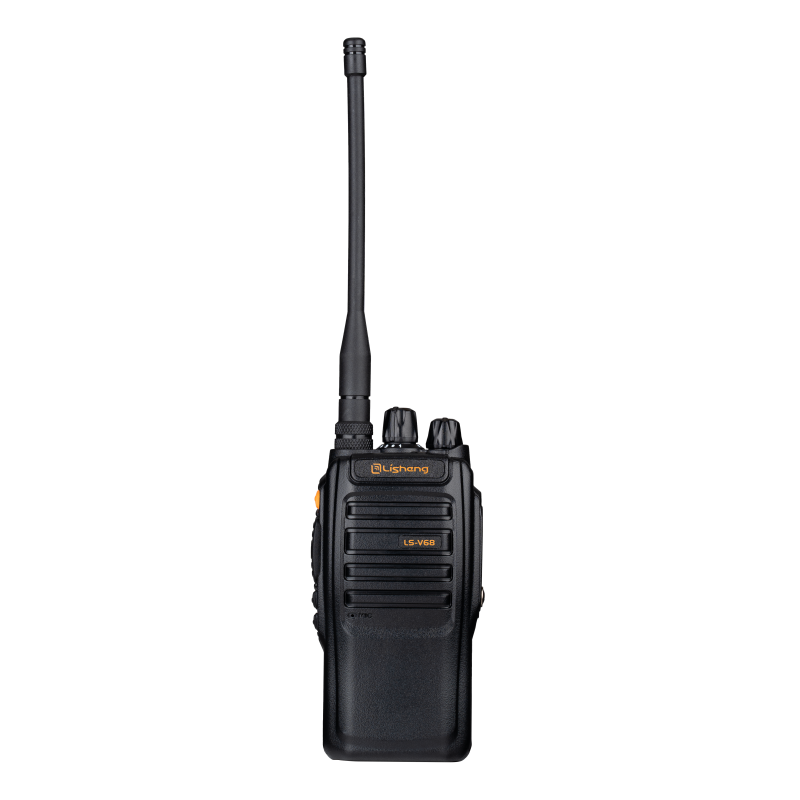

V68

The V68 professional digital two-way radio supports both digital and analog modes, allowing it to integrate seamlessly with existing analog systems while enabling an easy transition to digital communications. This protects current investments and helps users move smoothly toward a digital future. Featuring a high-precision RF architecture and professional-grade signal processing, the V68 delivers outstanding performance even in challenging environments. Its high-power transmission ensures wider coverage and stronger penetration, providing reliable communication support for engineering dispatch, security patrol, logistics operations, and other professional applications.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

■Digital/Analog Smooth Migration
Supports both digital and analog modes, ensuring full compatibility with existing analog systems while enabling an easy upgrade path to digital communication and reducing system transition costs.



■High/Low Power Switching
Offers selectable 5W (high power) and 1W (low power), allowing users to adjust output based on distance and environment, optimizing battery usage without compromising coverage.



■Dual Slot Direct Mode
Enables two simultaneous calls on a single frequency, conserving spectrum resources and maintaining smooth dispatch even during peak operation periods, improving team coordination.



■Flexible Calling Services
Supports private call, group call, and all call, allowing users to quickly establish communication channels across different working scenarios and ensure uninterrupted workflows.



■Multiple Encryption Options
Provides standard encryption and AES-256 encryption to safeguard both voice and data, enhancing overall communication security.



■VOX
Hands-free communication triggered by voice detection, ideal for scenarios requiring frequent communication while keeping both hands free.



■Lone Worker Alarm
If no user activity is detected within a preset time (such as no key press or movement), the radio automatically triggers an alarm and can send location information, improving personal safety in solitary work environments.



■Scan Function
Automatically searches available channels, helping users quickly find a usable channel in emergencies and improving response efficiency.



■Noise Reduction
Reduces background noise and wind interference to deliver clearer audio and stable communication, even in noisy environments.

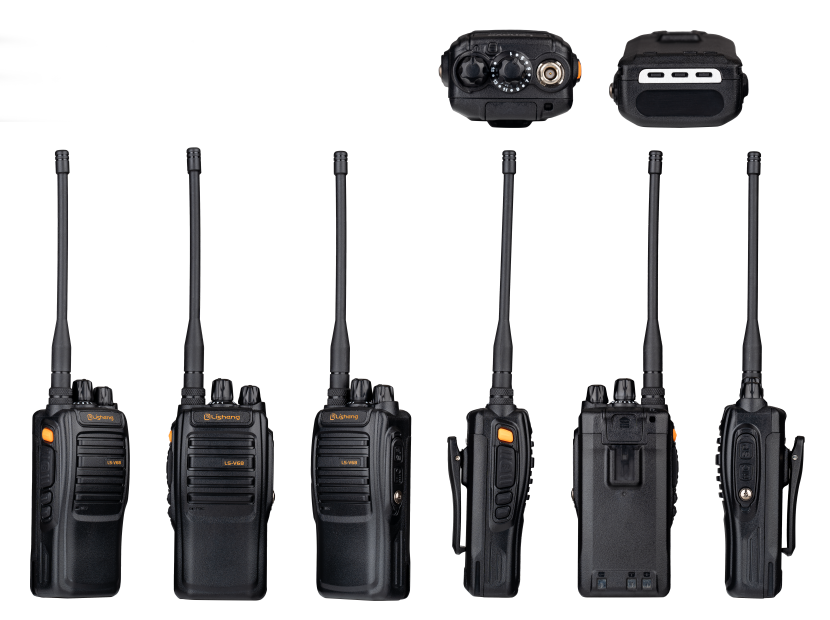

Appearance Introduction


Product Accessories

  • Belt Clip

    Belt Clip

  • Charger Pod

    Charger Pod

  • Battery

    Battery

  • AC Adaptor

    AC Adaptor

  • AC Adaptor

    AC Adaptor

  • Hand Strap

    Hand Strap

  • Antenna

    Antenna

General
Frequency Range 136~174MHz,350~400MHz
400~470MHz,450~520MHz
Channel Spacing 12.5 KHz / 25 KHz
Channel 48 Channels
Zone Capacity 3 Zones
Operating Voltage 7.4V
Battery Capacity 1000mAh
Battery Life (5/5/90) Analog: 6.7 hours ; Digital: 8.8 hours
Vocoder Type AMBE+2
Frequency Stability ±1.0ppm
Antenna Impedance 50Ω
Dimensions (without Antenna) 4.92"H x 2.4"W x 1.65"D (125mm*61mm*42mm)
Weight 8.22oz(233g)

Receiver
Analog Sensitivity 0.2μV (12dB SINAD)
Digital Sensitivity 0.22μV (Typical) (BER 5%)
Adjacent Channel Selectivity 60dB @ 12.5KHz / 65dB @ 25KHz
Intermodulation Rejection 60dB @ 12.5KHz / 60dB @ 25KHz
Blocking 84dB @ 12.5KHz /84dB @ 25KHz
Co-Channel Rejection -12dB @ 12.5KHz
 -8dB @ 25KHz
Spurious Response Rejection 65dB @ 12.5KHz / 65dB @ 25KHz
Rated Audio Output Power 1.0W /16Ω
Conducted Spurious Emission <-57dBm(9KHz~1GHz)
<-47dBm(1GHz~12.75GHz)

Transmitter
RF Power 1W (Low) / ≤5W (High)
Power Margin Variation +2/-3dB (under Extreme Conditions)
Frequency  Error ±1.0ppm
FSK Error <5%
4FSK Transmission
Bit Error Rate (BER)
≤1×10-4
4FSK Modulation
Frequency Deviation Error
≤10.0%
Occupied Bandwidth (DMR) ≤8.5KHz
TX Attack/Release Time ≤1.5ms
Adjacent Channel Power ≤-50dB @12.5KHz /≤-60dB @25KHz
Transient Adjacent Channel Power ≤-50dB @ 12.5KHz / ≤-60dB @ 25KHz
FM Modulation 16K0F3E @25KHz/
11K0F3E @12.5KHz
4FSK Digital Modulation 12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
Audio Distortion ≤3% @ 40% Deviation
Audio Response +1 ~ -3dB
FM Hum and Noise 40dB @ 12.5KHz / 45dB @ 25KHz
Spurious Emission ≤-36dBm (9KHz~1GHz)
≤-30dBm (1GHz~12.75GHz)

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
