DP768 LTE+DMR Hybrid Radio

■Simultaneous DMR & PoC Transmission

Supports concurrent DMR private-network and PoC public-network transmission, allowing both networks to operate simultaneously without interference.

■Vibration

Provides discreet vibration alerts for incoming calls, ensuring you never miss important communications in noisy or silent environments.

■Gateway Mode

Bridges DMR private and PoC public networks, enabling seamless voice interconnection for efficient cross-network communication.

■Bluetooth (Optional)
Enables wireless audio connectivity and over-the-air programming for greater flexibility and convenience.

■Noise Cancellation
Advanced noise-cancellation technology effectively reduces background noise, delivering clear and intelligible audio even in demanding, high-noise environments.

■GPS Positioning
Works with dispatch platforms to provide real-time location reporting and personnel tracking, enabling efficient team management and smarter dispatch.

■IP68 Protection
Built to withstand dust, water, and immersion up to 1.5 meters, delivering reliable performance in demanding outdoor and industrial environments.

■1.8-Inch Color LCD
Features a clear 1.8-inch color LCD that displays channel, group ID, signal status, and key operating information at a glance.

■300 Hours of Voice Recording (Optional)
Supports up to 300 hours of voice recording for call archiving, security audits, and incident playback.

■ARC4 / AES128 / AES256 Encryption
Provides multi-level encryption with ARC4, AES128, and AES256 to safeguard voice and data transmissions against unauthorized access.

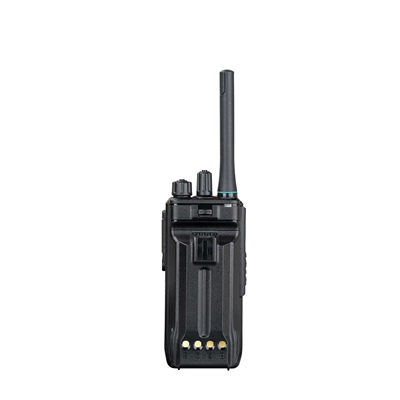

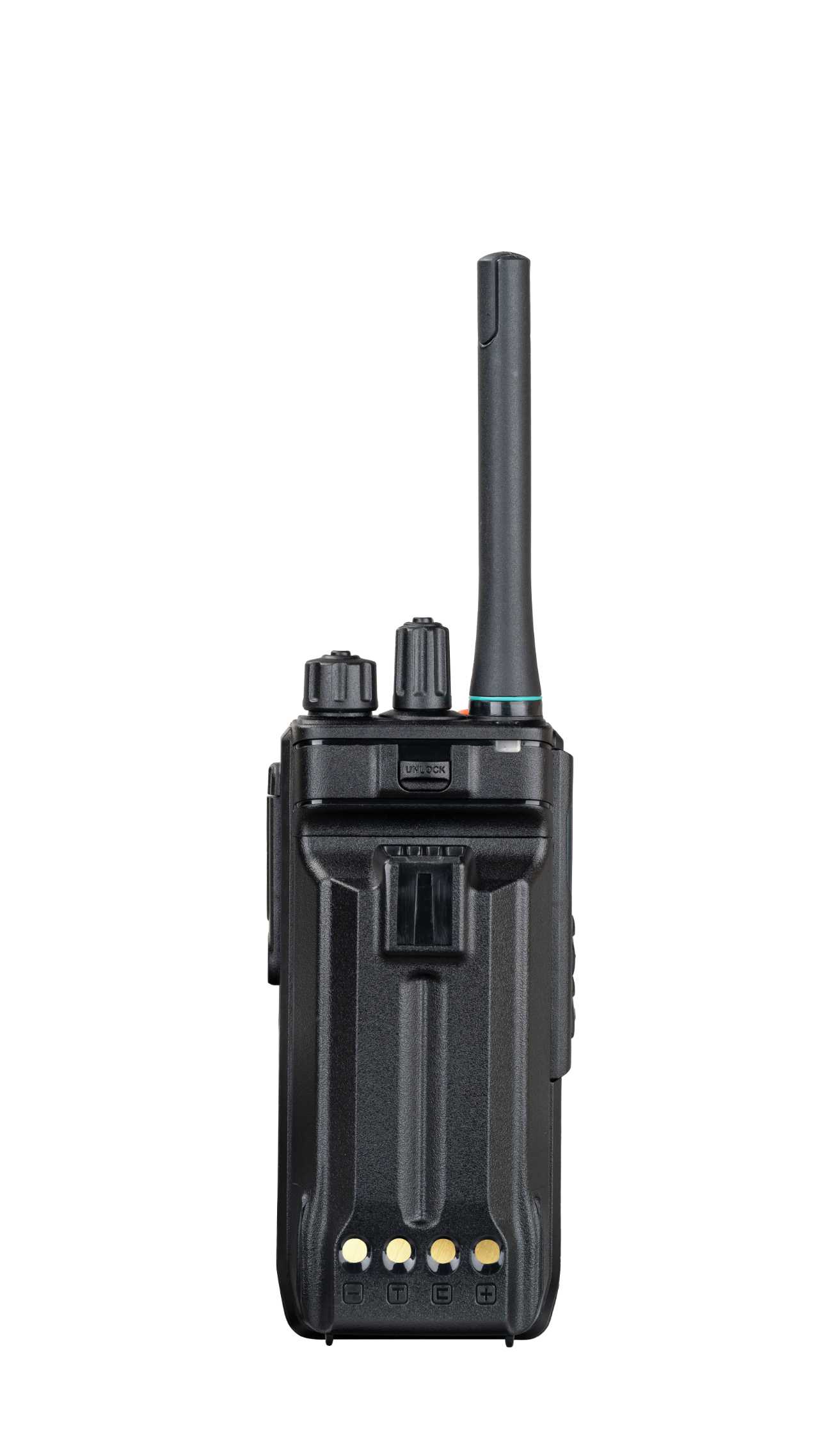

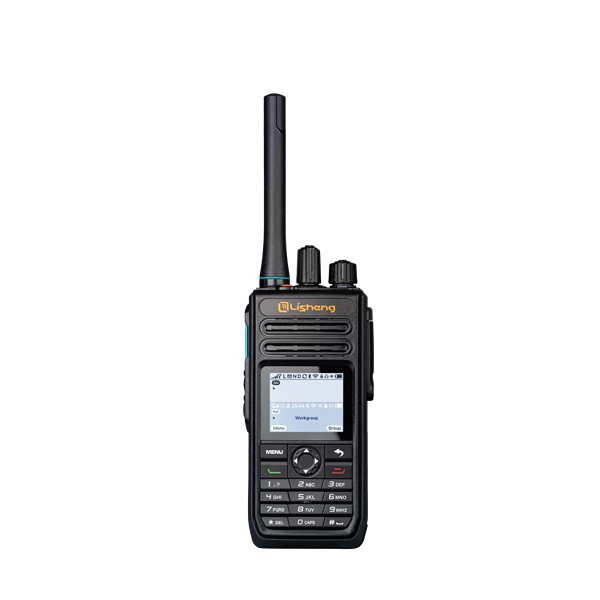

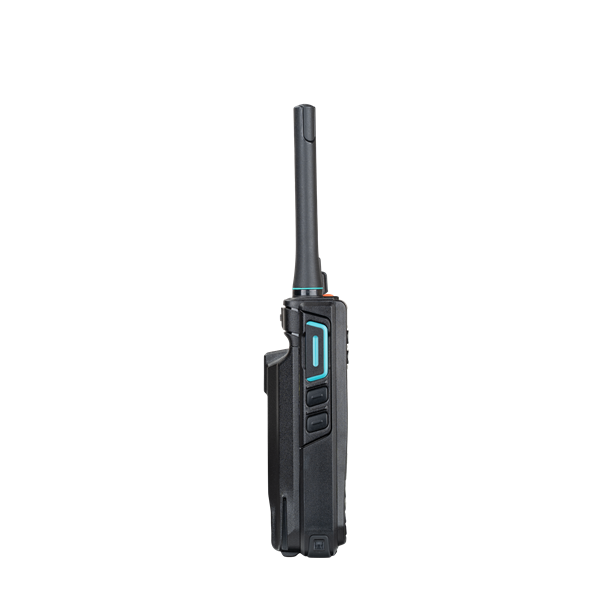

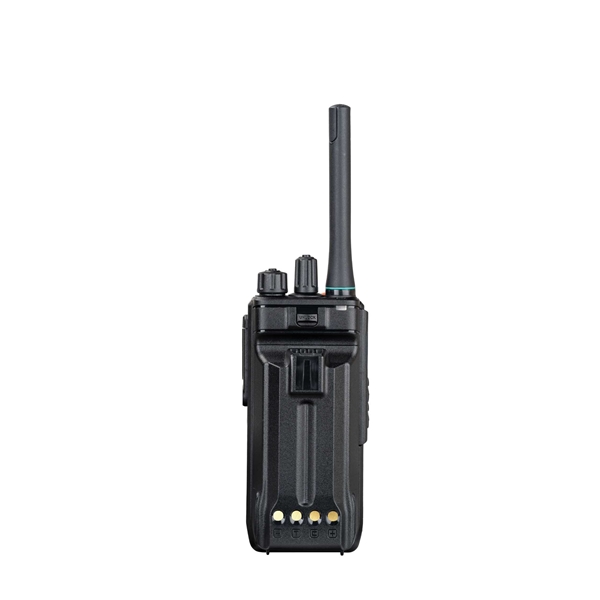

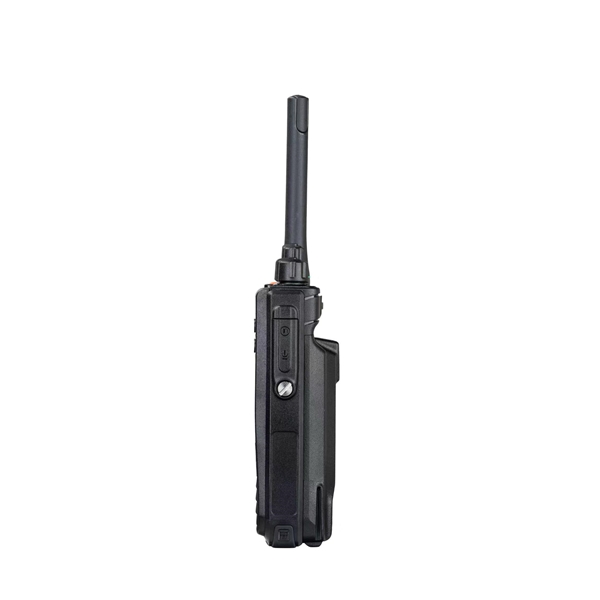

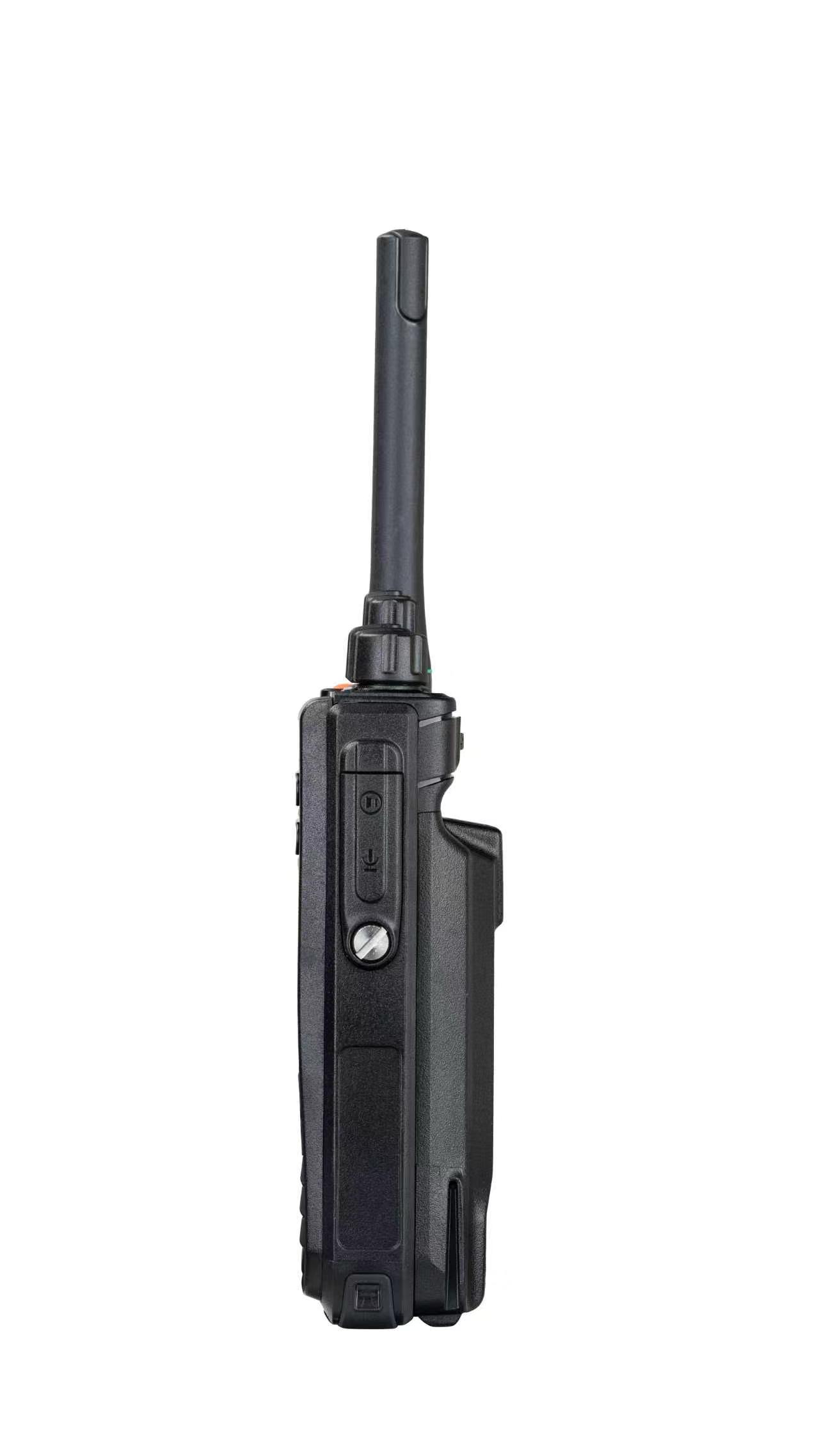

Appearance Introduction

Product Accessories

Battery
Belt Clip
Charging Dock
Hand Strap
AC Adapter
Antenna

General
LTE	Asia version	■LTE-TDD:B34/B38/B39/B40/B41 ■LTE-FDD:B1/B3/B5/B8
	Euro version	■LTE-FDD:B1/3/5/7/8/20/28 ■LTE-TDD:B38/40/41
	US version	■LTE-FDD:B2/3/4/5/7/8/28/66
DMR		136-174MHz,400MHz-480MHz
Zone/Channel Capacity		64/1024
Operating Voltage		7.4V
Dimensions(without Antenna)		149.5mm64mm43mm
Weight		336g
LCD		Size(inch) 1.77 Resolution 160*128
Connector		M6 connector Audio / Programming
SIM Card		Nano-SIM Single card
Battery Capacity		3000mAh
Battery Life(5/5/90)		PoC+Analog Mode:13 Hours; PoC+DMR Mode:16 Hours
Vocoder Type		AMBE+2 / NVOC
Frequency Stability		±0.5ppm
Antenna Impedance		50Ω
Ingress Protection(IP)Rating		IP68
Receiver
Analog Sensitivity		0.18μV (FM @12dB SINAD) 0.18μV(typ.）（FM @12dB SINAD) 0.3μV(FM 20dB SINAD)
Digital Sensitivity		0.18μV(typ.) (@5% BER)
Adjacent Channel Selectivity		60dB @12.5KHz 70dB @ 25KHz
Intermodulation Rejection		65dB @12.5KHz 65dB @ 25KHz
Blocking		90dB @12.5KHz 90dB @ 25KHz
Co-Channel Rejection		-12dB @12.5KHz -8dB @ 25KHz
Spurious Response Rejection		70dB @12.5KHz 70dB @ 25KHz
Rated Audio Output Power		1W/16Ω
Conducted Spurious Emission		<-57dBm (9KHz～1GHz) <-47dBm (1GHz～12.75GHz)
Transmitter
RF Power		1W(Low) / ≤5W(High)
Power Margin Variation		+2/-3dB(Under extreme conditions)
Frequency Error		±0.5ppm
FSK Error		<3%
4FSK Transmission Bit Error Rate		≤1×10⁻⁴
4FSK Modulation Frequency Deviation Error		≤10.0%
Occupied Bandwidth(DMR)		≤8.5kHz
TX Attack/ Release Time		≤1.5ms
Adjacent Channel Power		≤-60dB @12.5KHz ≤-70dB @ 25KHz
Transient Adjacent Channel Power		≤-50dB @ 12.5KHz ≤-60dB @ 25KHz
FM Modulation		16KOF3E @ 25KHz 11KOOF1D @12.5KHz
4FSK Digital Modulation		12.5KHz(data only):7K60FXD 12.5KHz(data+voice):7K60FXE
Audio Distortion		≤3% @ 40% deviation
Audio Response		+1～3dB
FM Hum and Noise		40dB @ 12.5KHz 45dB @ 25KHz
Spurious Emission		≤-36dBm (9kHz～1GHz) ≤-30dBm (1GHz~12.75GHz)

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
