LTE PoC Radio
H58
The H58 is a professional 4G PoC radio designed for wide-area communication and efficient team coordination. Featuring 4G LTE connectivity, GPS/BeiDou dual-mode positioning, Wi-Fi, Bluetooth, an Android operating system, and a 1.77-inch color display, it delivers flexible and reliable communication across different work environments. Supporting individual calls, group calls, all calls, and broadcast calls, the H58 enables fast and efficient team communication. Combined with a smart management platform, it provides an integrated solution for professional communication, dispatching, and team management.
Product Orientation Map
Features
Specifications
Accessories
■4G LTE Wide-Area Communication
Supports 4G LTE connectivity for reliable wide-area communication, helping teams stay connected across cities, campuses, and outdoor work areas.
■GPS / BeiDou Dual-Mode Positioning
Supports GPS and BeiDou dual-mode positioning for accurate location information and efficient personnel coordination.
■Wi-Fi Connectivity
Supports Wi-Fi connection for flexible network access in different working environments.
■1.77-Inch Color Display
Equipped with a 1.77-inch color LCD for clear viewing of communication and device information.
■Android Operating System
Built on an Android platform, providing a smart and flexible operating experience.
■Bluetooth Voice Communication
Supports Bluetooth voice functionality for convenient wireless communication and audio connectivity.
■Multiple Call Modes
Supports Individual Call, Group Call, All Call, and Broadcast Call, enabling fast and flexible communication between teams.
■Smart Management Platform
Works with a smart management platform for centralized communication, dispatching, device management, and team coordination.

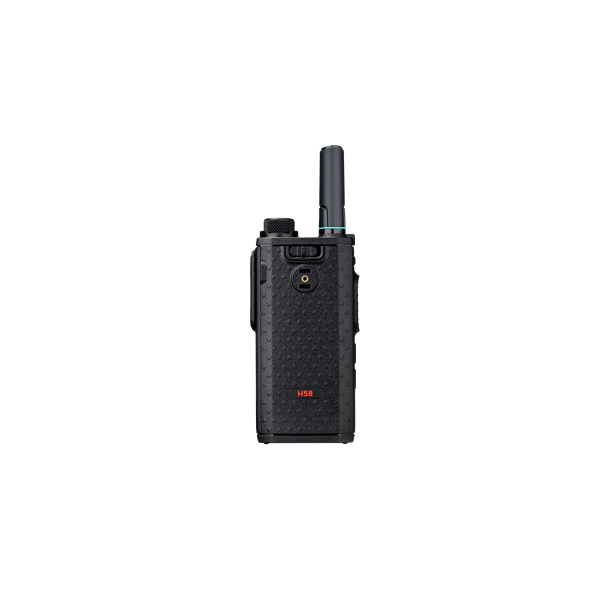

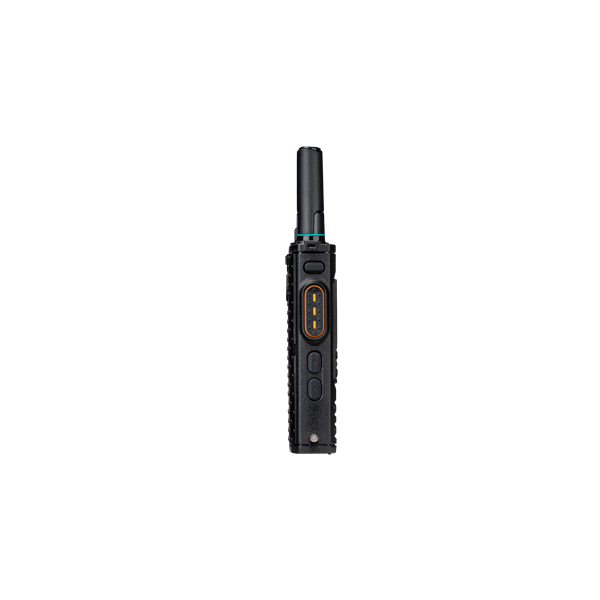

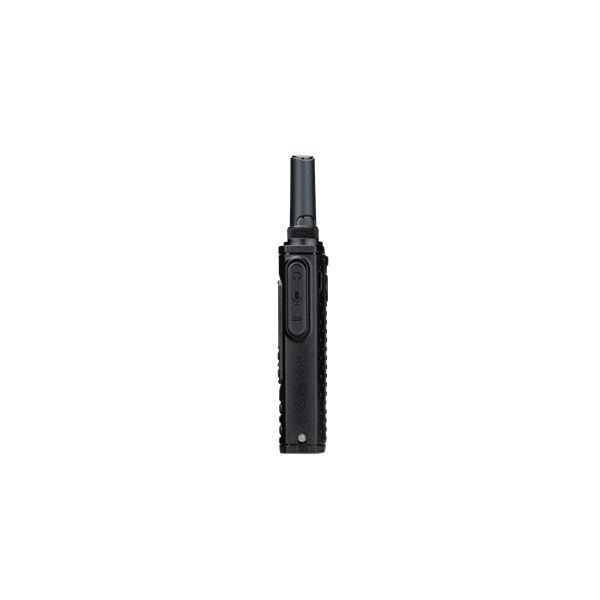

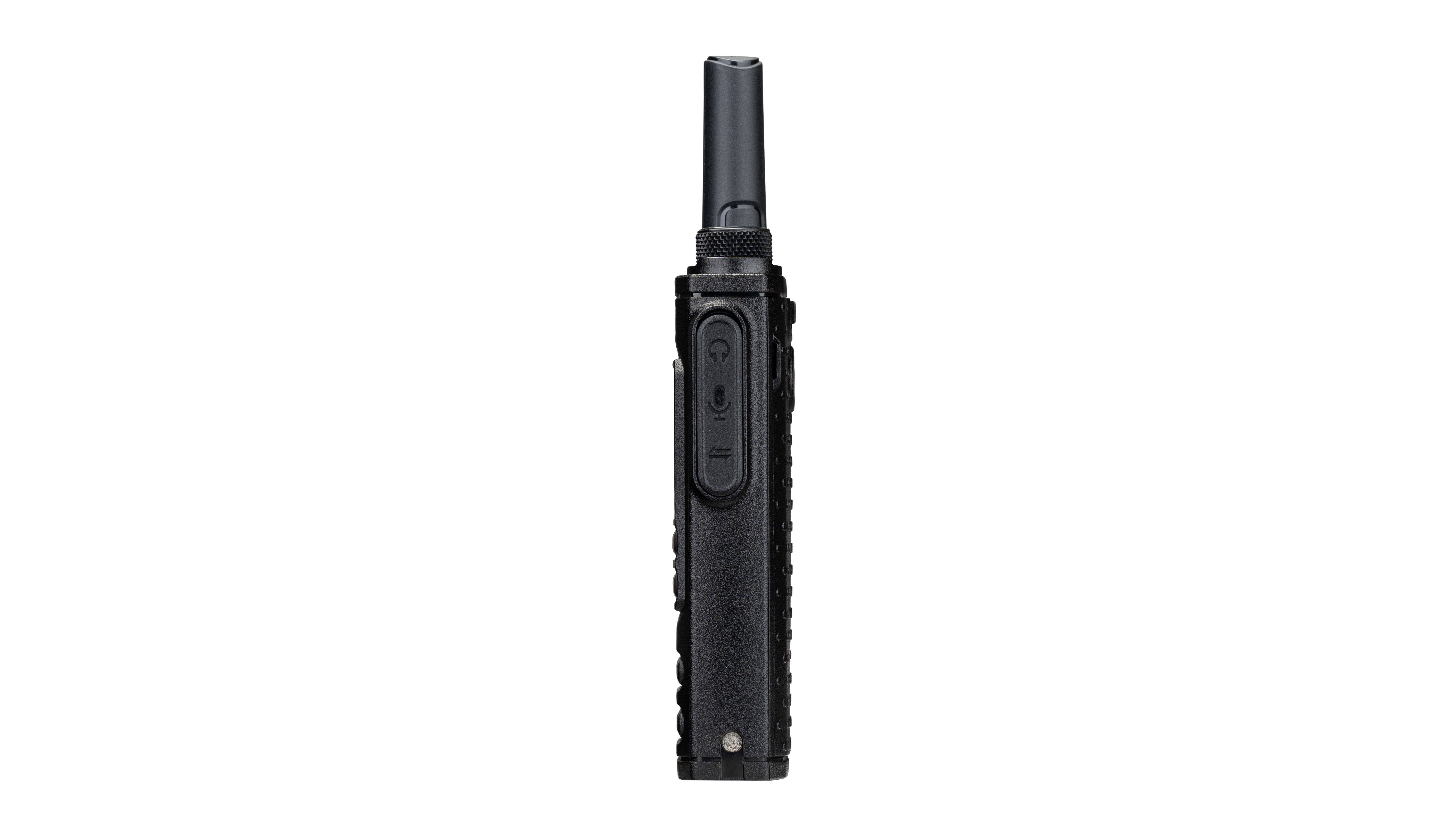

Appearance Introduction
Product Accessories
|
Item |
Details |
Remark |
|
|
Network |
Asia version |
■GSM Band2/3/8 |
Frequency Bands Customizable Upon Request |
|
Euro version |
GSM: Band2/3/5/8 |
||
|
US version |
GSM:850MHz,1900MHz |
||
|
Bearer |
LTE |
TDD CAT4, FDD CAT4 |
|
|
Dimensions |
Includes Battery |
127mm*60.5mm*28mm |
|
|
Weight |
With Battery and Antenna |
Around 201g |
|
|
LCD |
Size（inch） |
1.77 |
|
|
Resolution |
160*128 |
|
|
|
Sensor |
Accelerometer |
Support |
|
|
Connectors |
Charger |
Supports External Charging Pins |
|
|
Micro-USB |
YES |
Charging and Data Transmit |
|
|
SIM card |
Single Card |
|
|
|
Memory card |
NO |
|
|
|
Battery |
Type |
Li-polymer |
|
|
Capacit（mAh） |
3500 |
|
|
|
Charger Current |
850mA |
|
|
|
Charging Time |
≤ 6 Hours |
|
|
|
Memory |
ROM |
4GB |
|
|
RAM |
4Gb LPDDR2 |
|
|
|
Sound |
MIC |
1 |
|
|
Line-Control Earphone |
YES |
|
|
|
Speaker |
YES |
|
|
|
Speaker PA |
YES |
|
|
|
Bluetooth |
BT |
BT4.0 |
|
|
WIFI |
Standard |
802.11b/g/n |
1X1 |
|
WIFI Direct |
YES |
|
|
|
Wi-fi Router Android Hotspot(Wi-Fi tethering) |
YES |
|
|
|
GPS |
GPS |
YES |
Hybrid Positioning |
|
Beidou |
Beidou |
YES |
|
|
Antenna |
4G Main Antenna |
Rodlike |
|
|
Auxiliary Antenna |
FPC |
|
|
|
WIFI/BT Antenna |
FPC |
|
|
|
GPS/BD Antenna |
Ceramic Active Antenna |
|
|
|
Others |
Belt Clip |
Support |
|
|
Working Temperature |
-20℃ ~ 55℃ |
|
|
|
Dropping |
1.2m |
|
|
