LS-530 Portable Amateur Radio

LS-530

LS-530 is designed with small size allows you to take it anywhere - hiking, skiing, or while walking around town -The keypad and LCD display supply users friendly operations and easily to active rich functions by manual operation.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

The LS-530 is a multi-function mid-to-high-end handheld intercom with a LCD display and digital keyboard.

The display can customize, digital keyboards, powerful functions, stable performance, meet the needs of various industries, and bring you the most cost -effective experience.

Function

  • • 199 Channels
  • • Channel scan/priority channel scan
  • • TOT launch limited time
  • • Reading level settings
  • • VX voice control/voice control delay function
  • • CALL bell
  • • The end of the launch
  • • Emergency call channel
  • • High and low power adjustable
  • • CTCSS scan / DCS scanning
  • • Busy channel forbidden function
  • • Width bandwidth optional
  • • Instant frequency function
  • • Emergency alarm function
  • • Wired copy
  • • Manual/computer programming
  • • Software reading, writing frequency encryption function
  • • Capital tail sound function
  • • FM radio

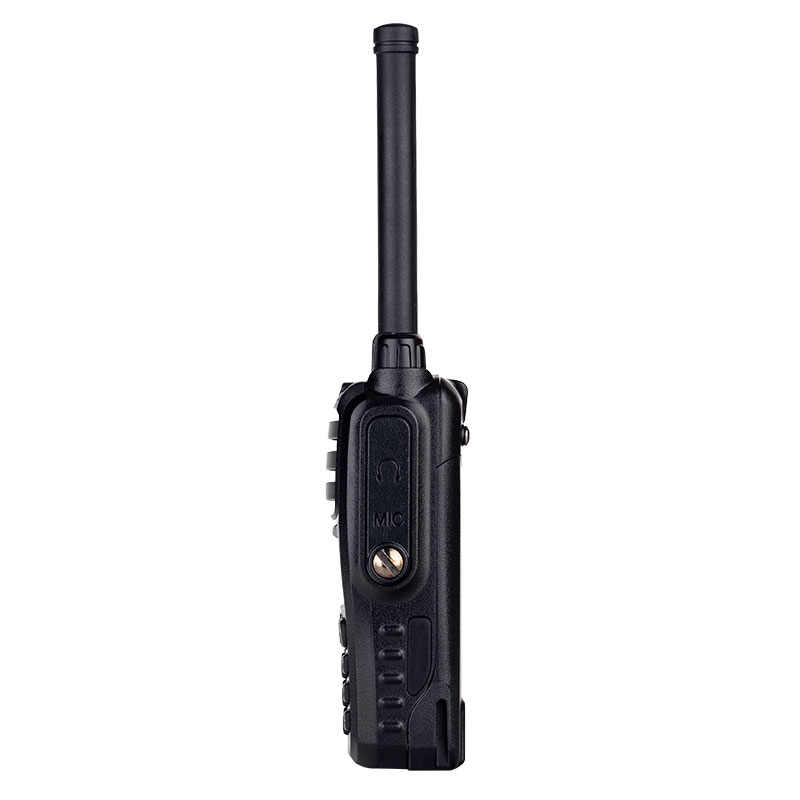

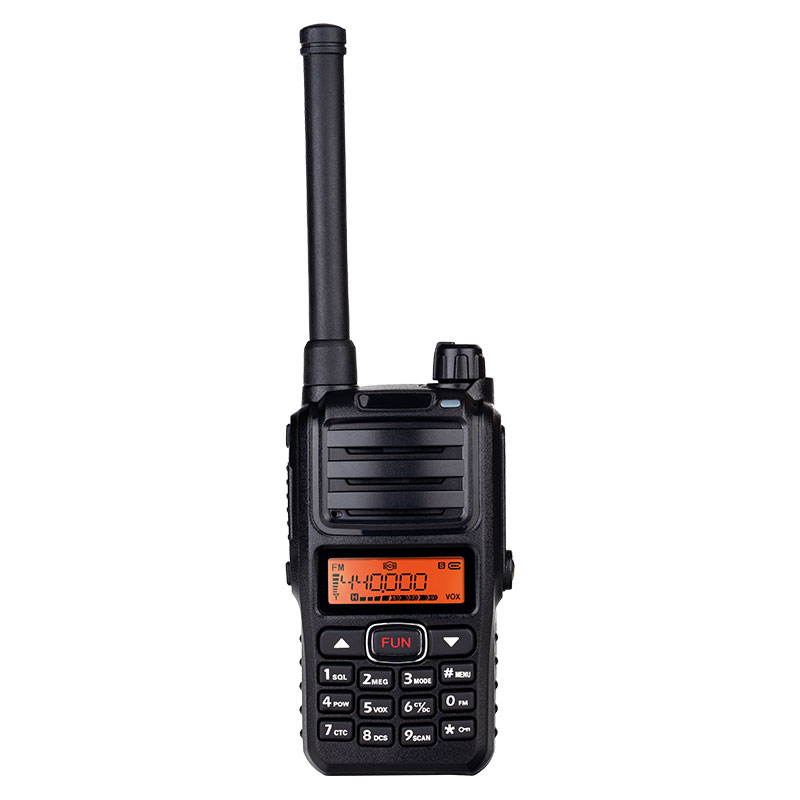

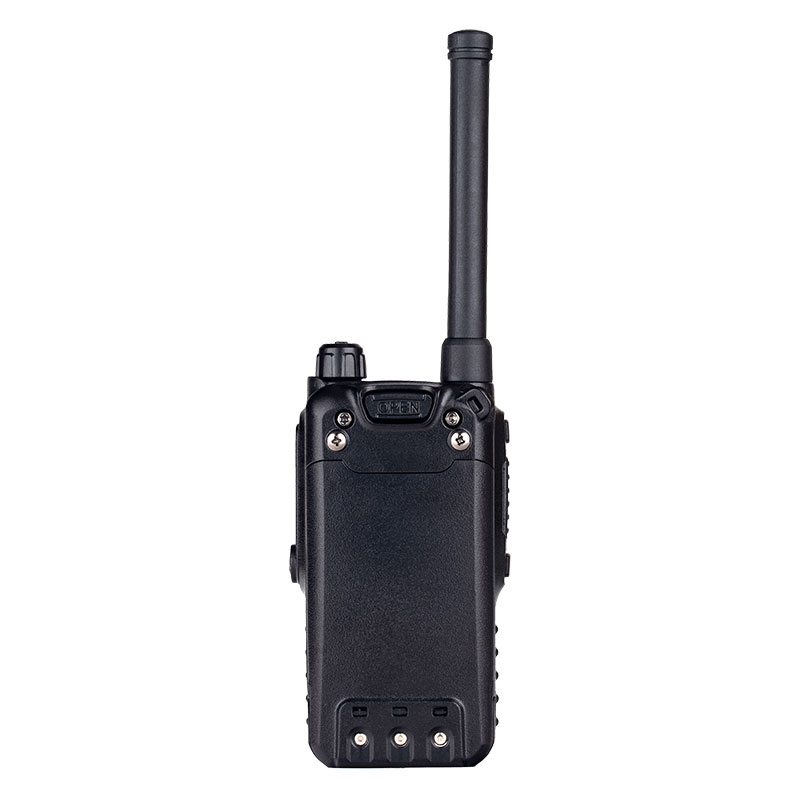

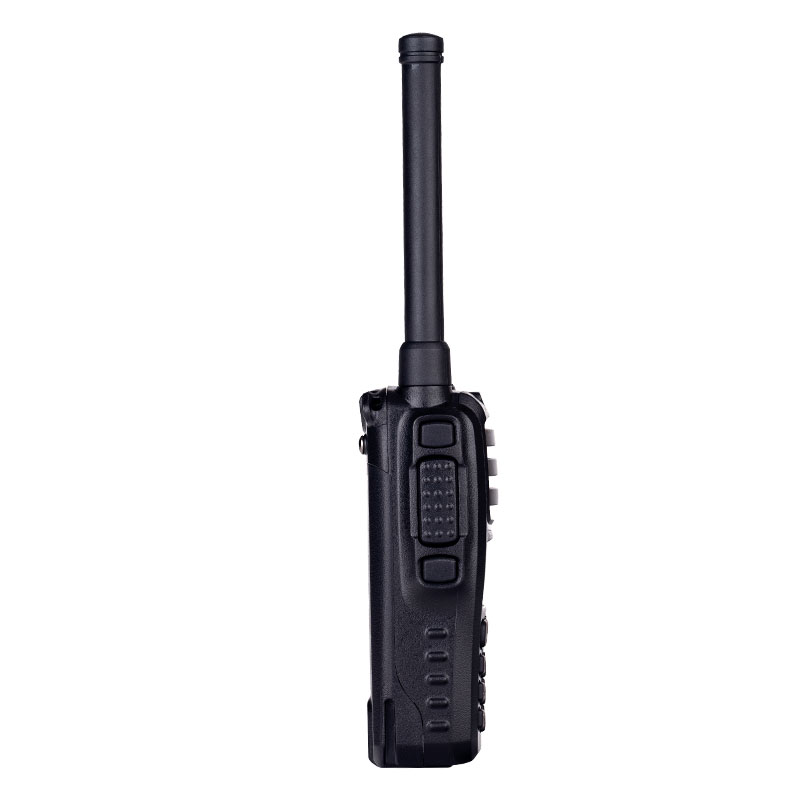

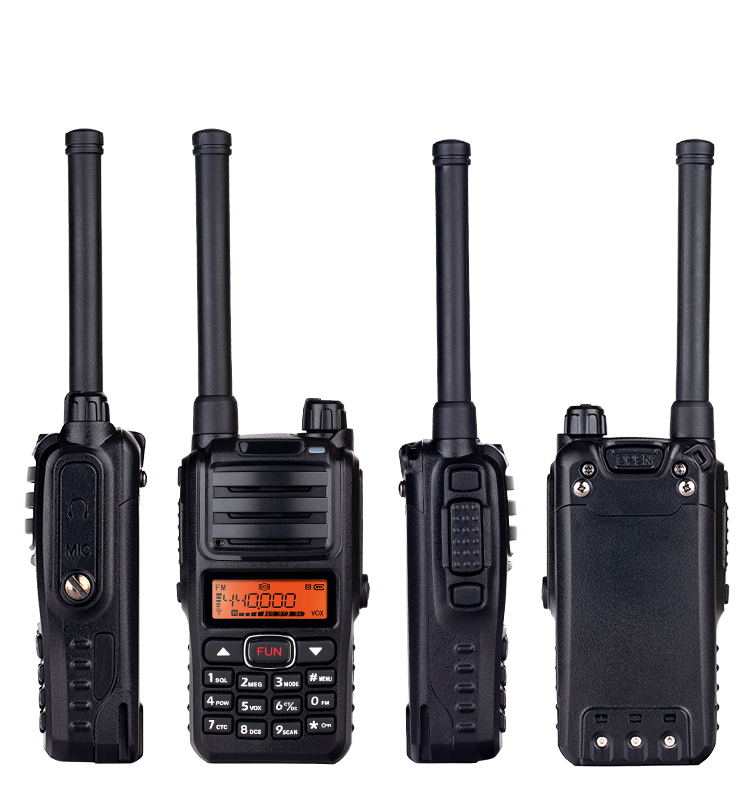

Appearance Introduction

Product Accessories

General
Frequency range 136-174MHz/350-390MHz
400-470MHz/450-520MHz
Channels 199个
Channels Spacing 25KHz /12.5KHz
Working Voltage DC 7.4V
Battery capacity 1200mAh
Frequency Stability +2.5 PPM
Operating Temperature
Range 		-20~+55C
Antenna interface SMA-K
Antenna Impedance 50Ω
Dimension (L×W×H) 112.5×58.5×35.5(mm)
Receiver
Receiving sensitivity 0.2uV
Adjacent Channel
Selectivity 		-65@25KHz; -60@12.5KHz
Signal -to -noise ratio 40dB@25KHz
Audio Response +2～-10dB; +1～-3dB
Audio power 400mW
Audio Distortion ≤5％
Transmitter
Output Power 5W (VHF) / 4W (UHF) / 1W
Transmitting current ≦1.5A
Modulation F3E
Occupy bandwidth ≦16KHz ; ≦8.5KHz
Transmitting ≦7.5μW
Signal-to-noise ratio -40@12.5KHz
45@25KHz
Audio Distortion ≦5%
Modulation Limiting ±2.5@12.5KHz；
±5.0@25KHz
Audio Response +3 to -3dB
Neighboring power ≥65dB@25KHz;
≥55dB@12.5KHz

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
