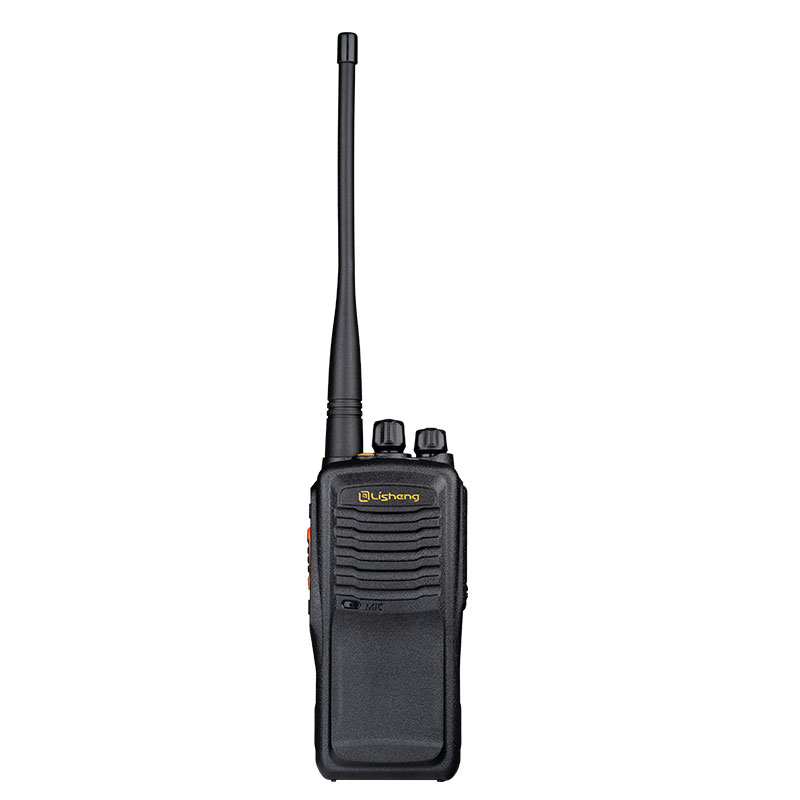

LS-A8 Professional FM Radio

LS-A8

LS-A8 is designed with loud speaker, large battery, several power levels choice, integrated with VOX, CTCSS/CDCSS, BCL, Emergency Alarm, etc., it easily meets the communication needs accross multiple environments. Moreover,LS-A8 explosion-proof version is specially designed for those who work in environments with explosive gas and combustible dusts, providing secure and reliable voice in the dangerous areas.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Function

  • • Channel capacity: 16 semi -dual industrial channels
  • • 8W output power, the coverage of call coverage is wider
  • • Height power optional
  • • Support standards and non -standard Asian audio compilation decoding
  • • PTT ID identity recognition function
  • • Voice disturbance function
  • • Cash's voice pressure expansion technology
  • • channel locking function
  • • Width and narrow belt compatible (12/12.5kHz)
  • • Programmable side key function
  • • channel scan/priority channel scan
  • • Battery power display
  • • Battery power saving function
  • • Software reading. Write frequency encryption function

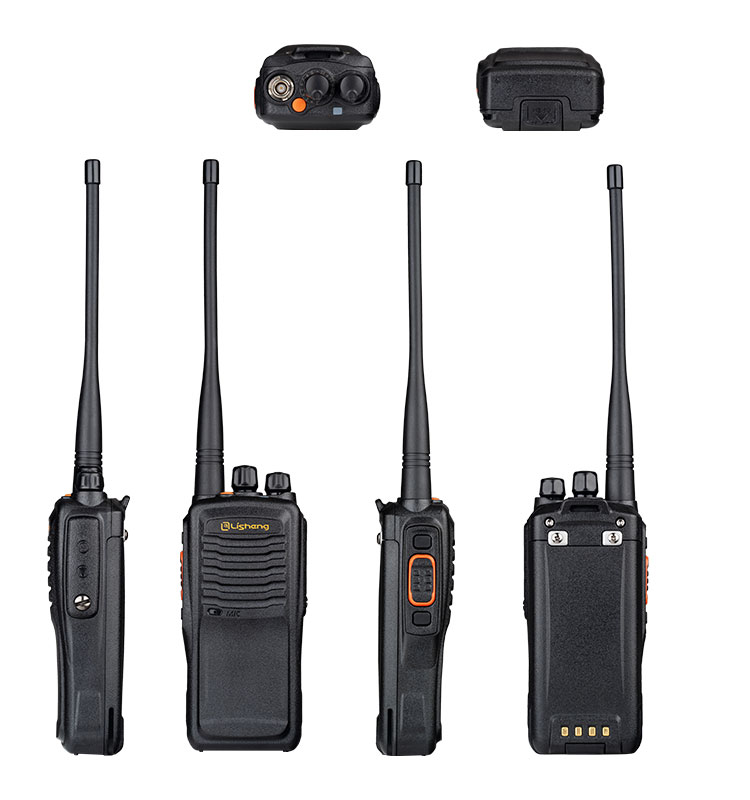

Appearance Introduction

Product Accessories

  • Charger Pod

    Charger Pod

  • Antenna

    Antenna

  • Belt Clip

    Belt Clip

  • Battery

    Battery

  • Hand Strap

    Hand Strap

General
Frequecy Range 136-174MHz/350-390MHz
400-470MHz/450-520MHz
Channel number 16个
Channel interval 25KHz /12.5KHz
Normal Operating
Voltage 		DC 7.4V
Frequency Stability +2.5 PPM
Operating Temperature -20~+55C
Antenna interface SMA-K
Antenna Impedance 50Ω
Dimension 136×58×36(mm)
Receiver
RX Sensitivity ≦0.18uV/0.22uV
Adjacent Channel
Selectivity 		≥70dB/60dB
Inter-modulation ≥60dB
Spurious Response
rejection 		≥70dB
Signal to noise ratio ≥70dB; ≥50/45dB
Rated Audio Power 1.0W
Audio Distortion ≤5％
Transmitter
Modulation Mode 16kфF3E / 8kфF3E
Modulation Limiting ±5kHz / ±2.5kHz
Audio Distortion ≤5%
Residual FM -45dB / -40dB
Neighboring power -70dB / -60dB
Miscellaneous and
Harmony 		-36dBm(1GHz -30dBm)1GHz

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
