LS-A800 Analog Portable Radio

LS-A800

A800 is designed with loud speaker, large battery, several power levels choice, integrated with VOX, CTCSS/CDCSS, BCL, Emergency Alarm, etc., it easily meets the communication needs accross multiple environments. Moreover, A800 explosion-proof version is specially designed for those who work in environments with explosive gas and combustible dusts, providing secure and reliable voice in the dangerous areas.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Features

  • • Voice pressure expansion function
  • • Voice disturbance function
  • • channel scan/priority channel scan
  • • Power saving/low voltage alarm function
  • • Power query function
  • • Sound control VOX function and sensitivity/delay settings
  • • Qt (50)/DQT (104 groups)
  • • Busy channel locking function
  • • Emergency alarm function
  • • Limited time (TOT) function
  • • channel locking function
  • • Chinese and English channel broadcast function
  • • High and low power adjustable function
  • • Tailing elimination function
  • • PTT ID post code function
  • • Wired replication function
  • • Programmable function
  • • Wide -narrow belt can choose frequency cryptocarming function

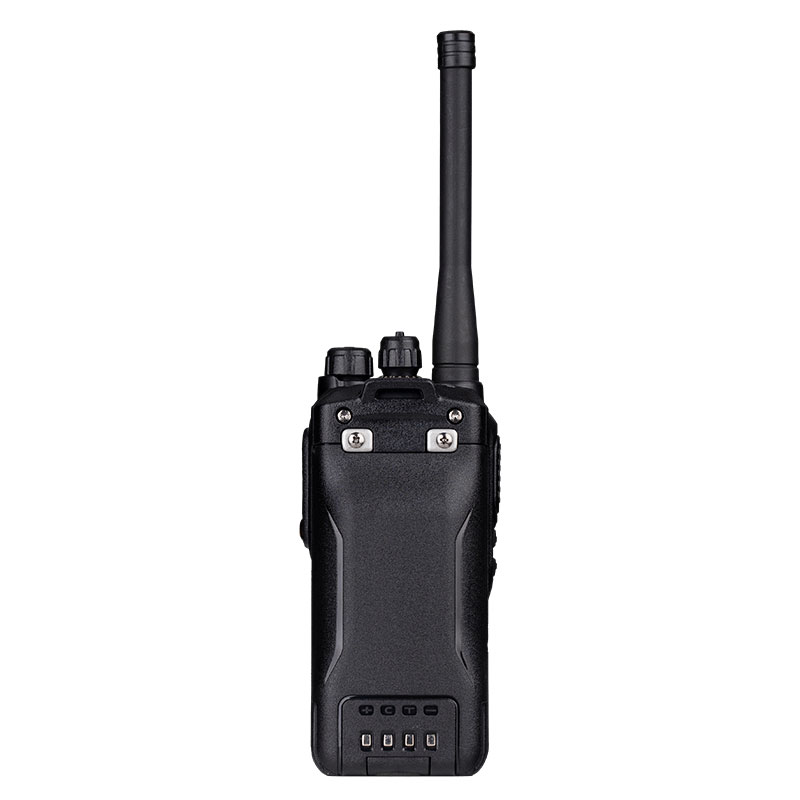

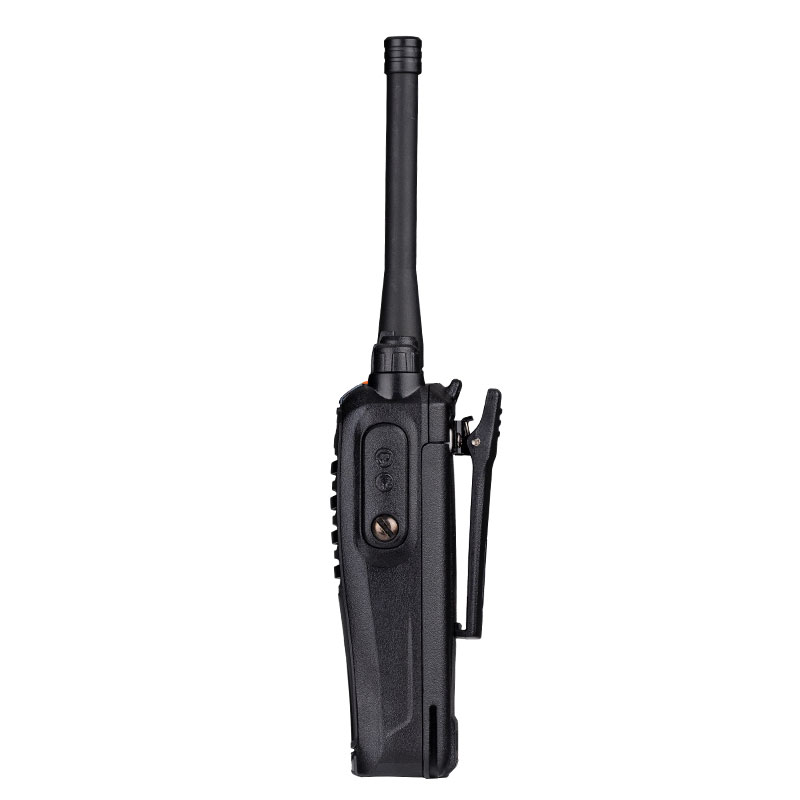

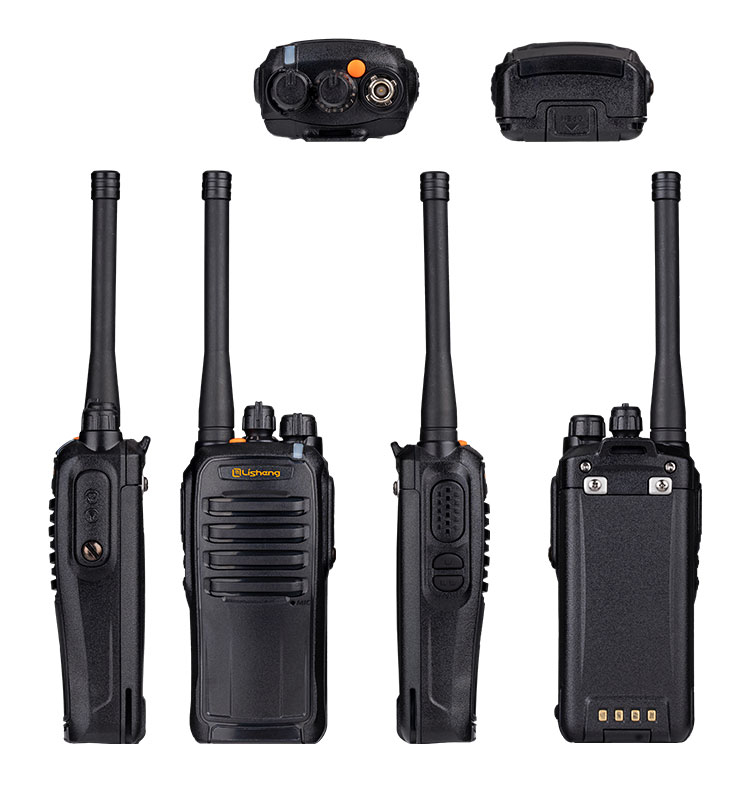

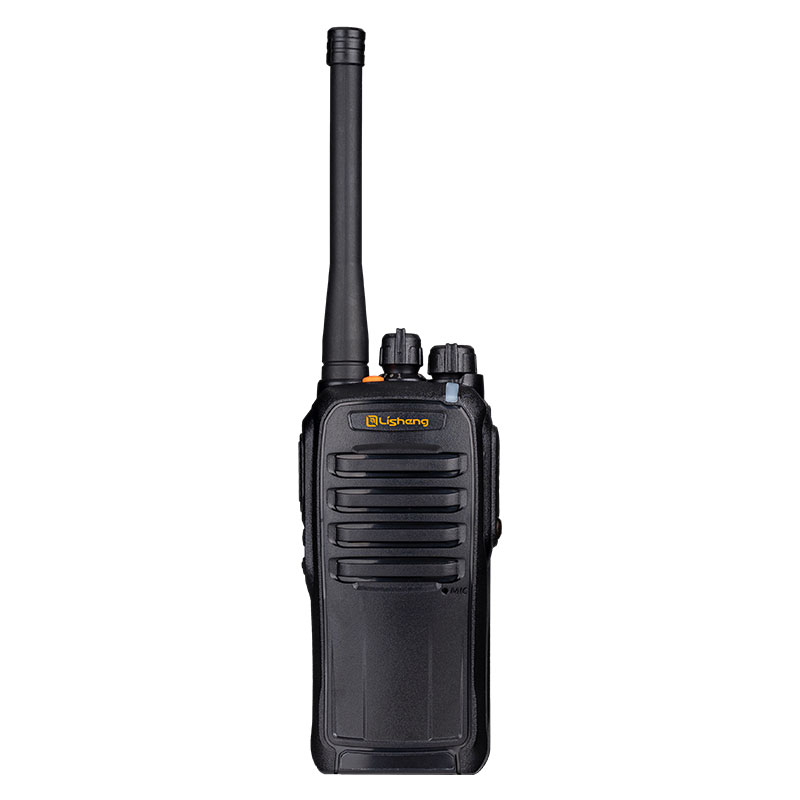

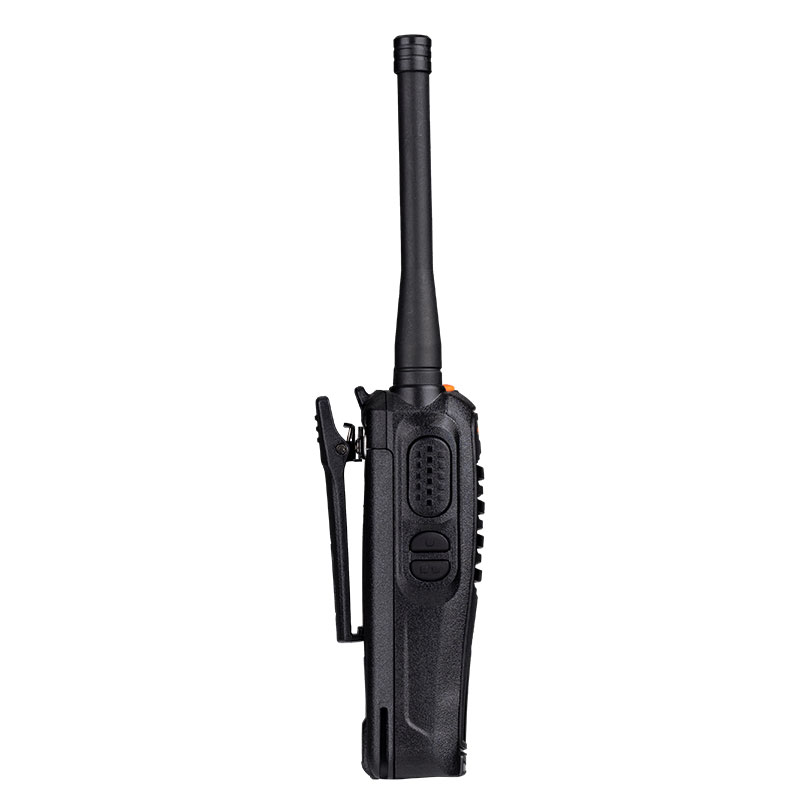

Appearance Introduction






Product Accessories

  • Antenna

    Antenna

  • Belt Clip

    Belt Clip

  • Battery

    Battery

  • Charger Pod

    Charger Pod

  • Hand Strap

    Hand Strap

General
Frequecy Range 136-174MHz,
400-470MHz,
350-390MHz
Channel number 16
Channel interval 25KHz (broadband) /
12.5kHz (narrow belt)
Antenna Impedance 50Ω
microphone impedance 2.2kΩ
Operating Voltage DC 7.4V
Frequency Stability +2.5 PPM
Transmitter
Carrier frequency
difference 		±2.5PPM
Carrier output power 8W（Hi）/2W（LOW）
Modulation sensitivity 10mV±3 mV
Preparation ≤3％
Maximum frequency ≤5kHz(Broadband)/2.5kHz
Preparation
characteristics 		Compared to the deviation
of the 6DB of each frequency
range of 6DB not more than
±3dB
Miscellaneous radio
frequency components 		≤7.5uW
Neighboring power ≤-70DB (Broadband)/
≤ -60dB (Narrow)
Receiver
RX Sensitivity ≤0.16uV
Startening the
sensitivity 		≤0.25 uV
Audio power ≥0.5W
Audio Distortion ≤3％
Audio Response Compared to the deviation
of each frequency 6DB
aggravation characteristics,
not more than+1DB -3DB
Common channel
suppression 		≥-8dB
Block ≥90dB
Adjacent Channel
Selectivity 		≥70DB (Broadband)/
≥65DB (Narrow)
Spurious Response
rejection 		≥70dB
Inter-modulation
Antibody 		≥65dB

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
