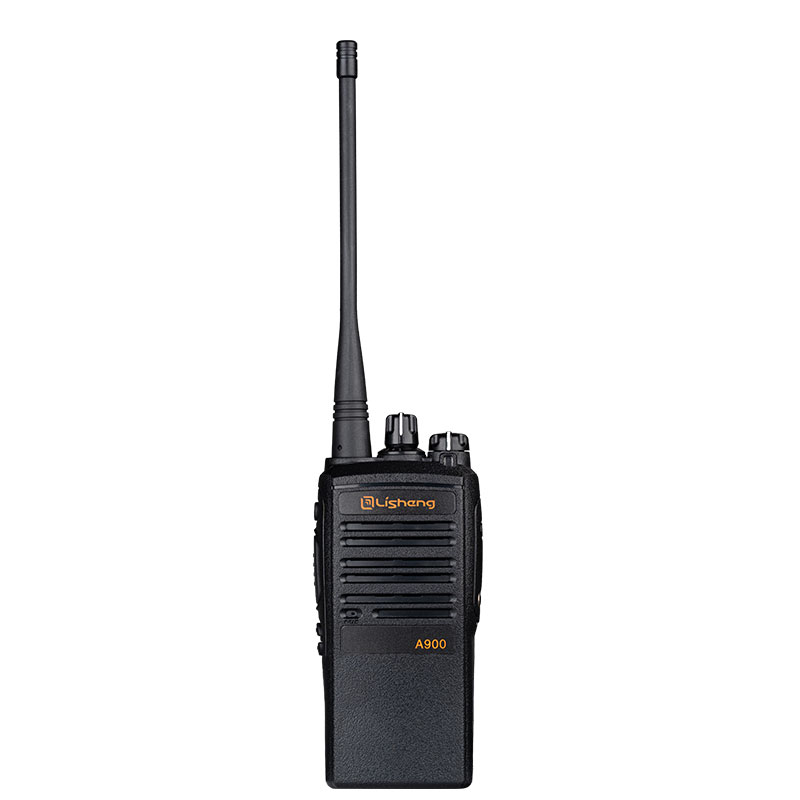

A900 Professional FM Transceiver
A900
A900 is a professional FM two-way radio with rich analog features, such as BCL, VOX, TOT, CTCSS/CDCSS, etc. It designed with powerful battery and rugged outlook, its reliable perfomance and long time standby fully covers your conventional communication needs.
Product Orientation Map
Features
Specifications
Accessories
LS-A900 has powerful functions, clear sound quality, long call distance, stable performance, and has obtained a number of international certifications such as FCC and CE in the United States. The shape is smooth, which is in line with the FCR ergonomic design, dustproof, anti -dumplings, anti -falls, and solid durability. It is suitable for many industries. It is suitable for many industries. Fields.
Features

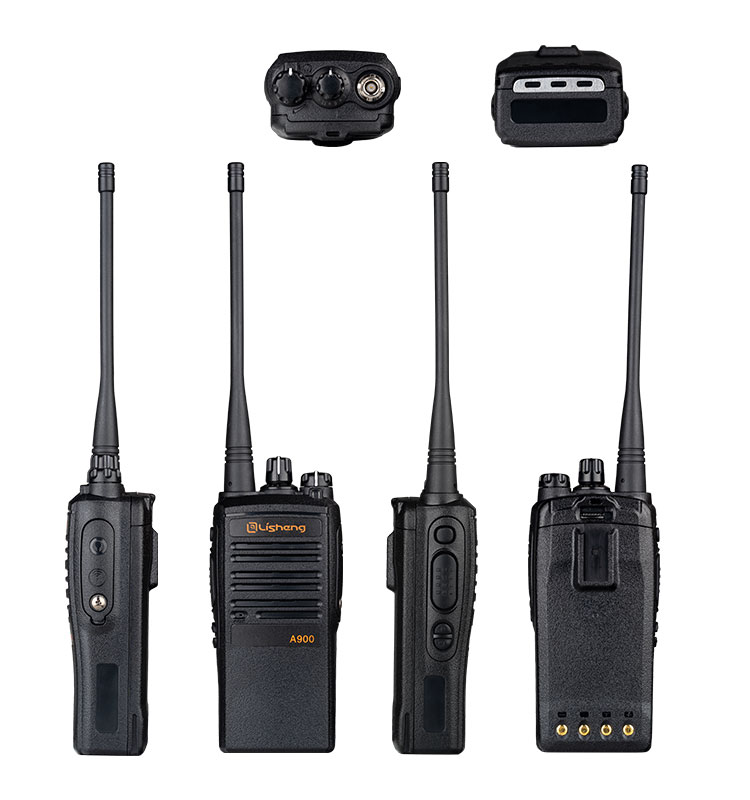

Appearance Introduction
Product Accessories
General | |
Frequecy Range |
136-174MHz/350-390MHz 400-470MHz/450-520MHz |
Channel number | 16 |
Channel interval | 25kHz/12.5kHz |
Microphone impedance | 2.2kΩ |
Normal Operating Voltage |
DC7.4V |
Frequency Stability | +2.5 PPM |
Operating Temperature | -20~+55℃ |
Antenna Impedance | 50Ω |
Dimension | 136×58×36(mm) |
Transmitter | |
Modulation Mode | 16kфF3E / 8kфF3E |
Modulation Limiting | ±5kHz / ±2.5kHz |
Audio Distortion | ≤5% |
Residual FM | -45dB / -40dB |
Neighboring power | -70dB / -60dB |
Miscellaneous and Harmony |
-36dBm(1GHz -30dBm)1GHz |
Receiver | |
RX Sensitivity | ≦0.18uV/0.22uV |
Adjacent Channel Selectivity |
≥70dB/60dB |
Inter-modulation | ≥60dB |
Spurious Response rejection |
≥70dB |
Signal to noise ratio | ≥70dB; ≥50/45dB |
Rated Audio Power | 1.0W |
Audio Distortion | ≦5% |
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
