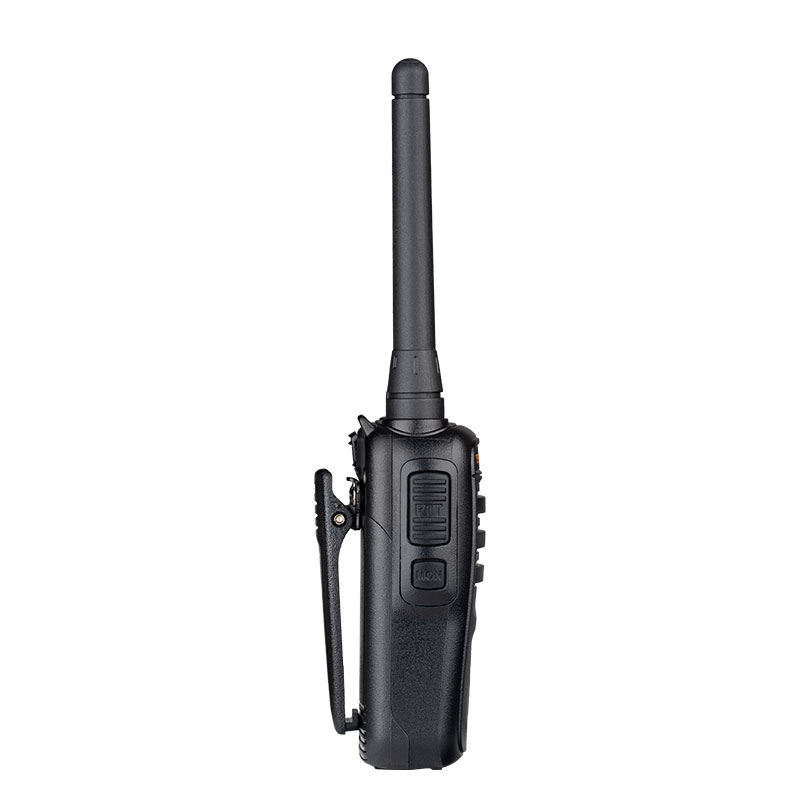

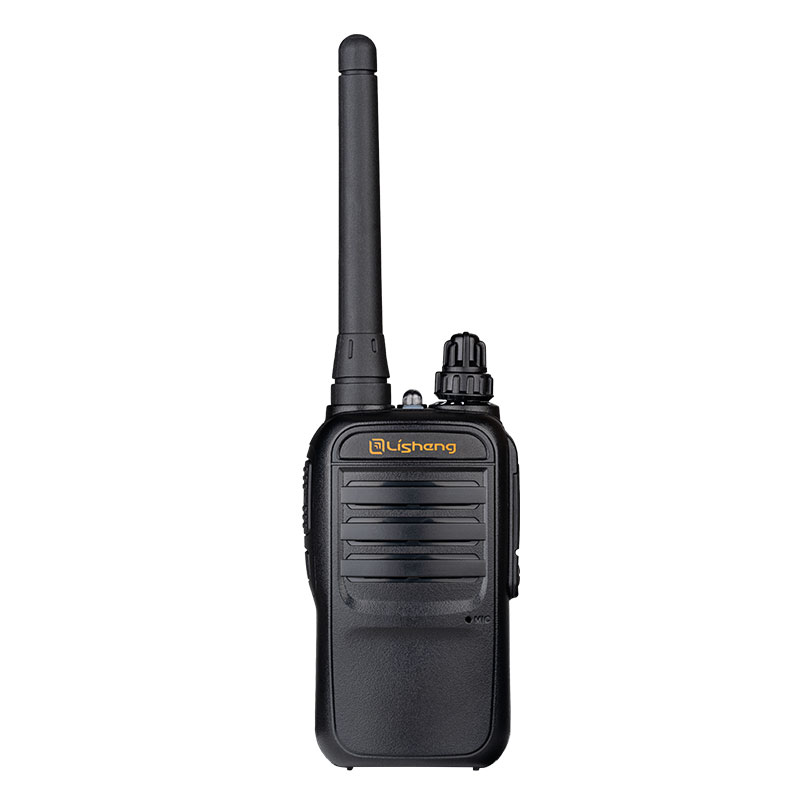

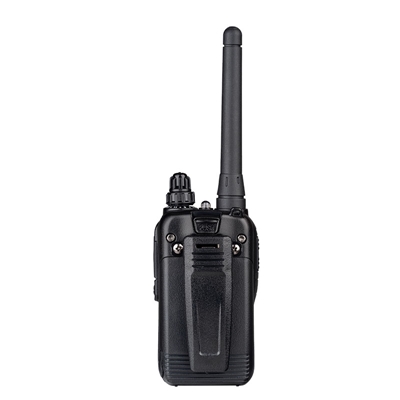

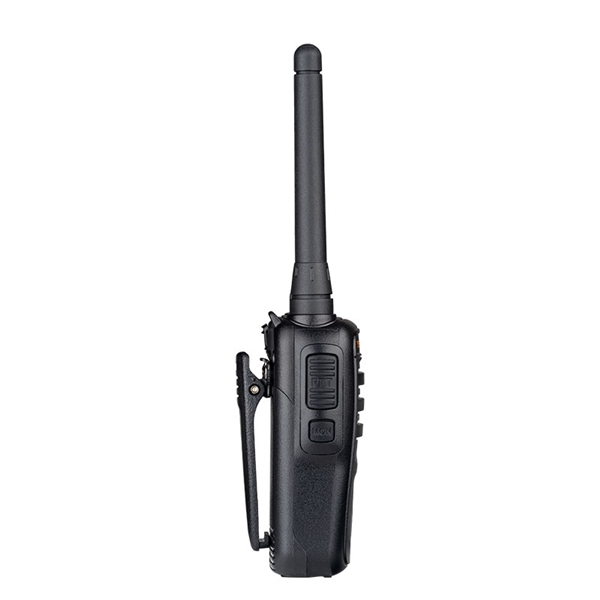

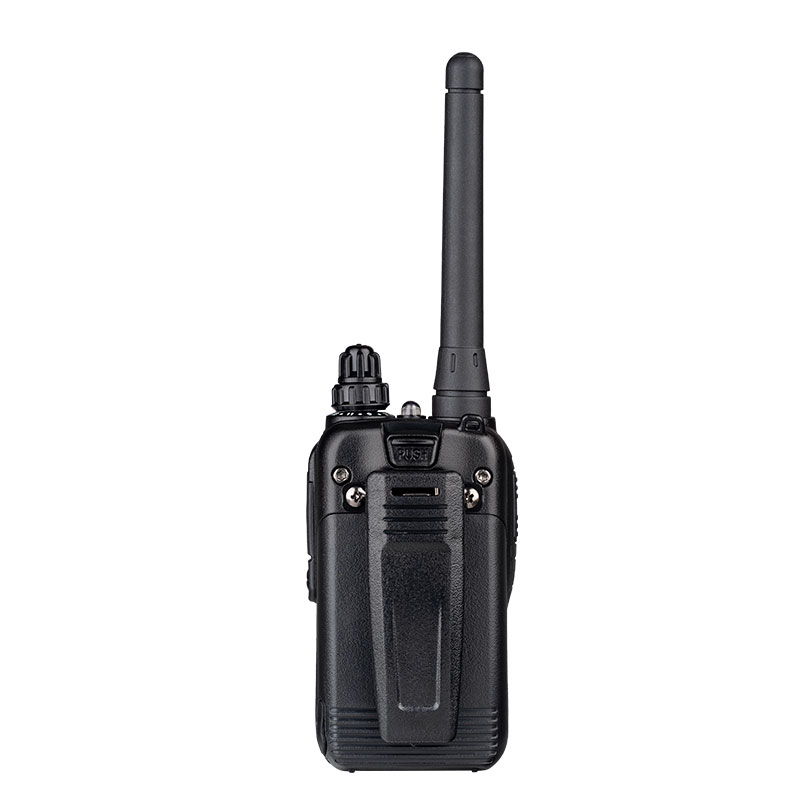

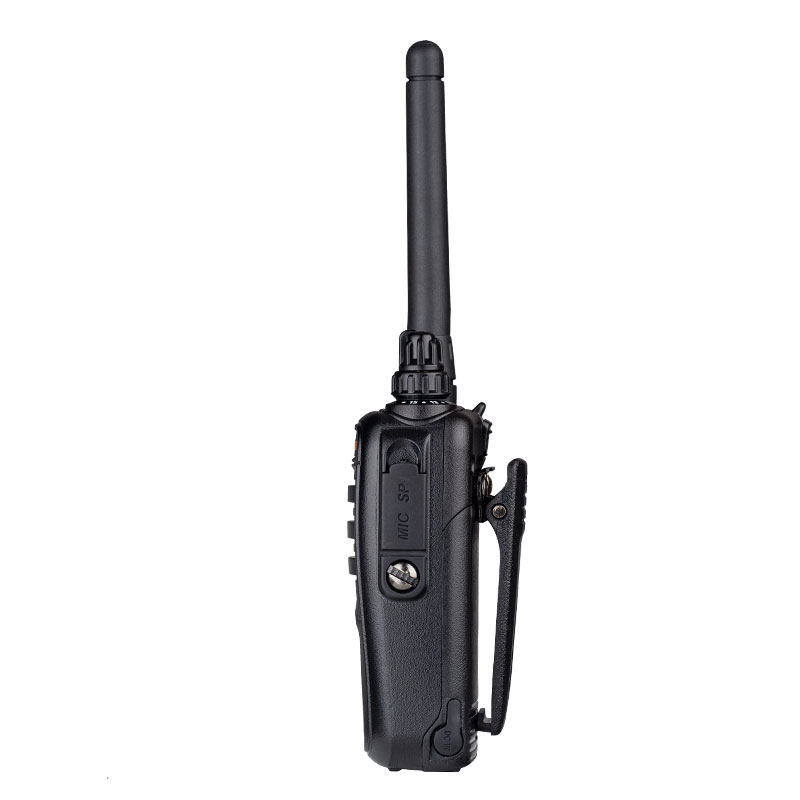

LS-V2 Mini Handheld Two Way Radio
LS-V2
LS-V2 is designed with small size allows you to take it anywhere - hiking, skiing, or while walking around town - and its operating flexibility brings the user many avenues of operating enjoyment. Moreover, the built-in torchlight brings bring the most convenience to users.
Product Orientation Map
Features
Specifications
Accessories

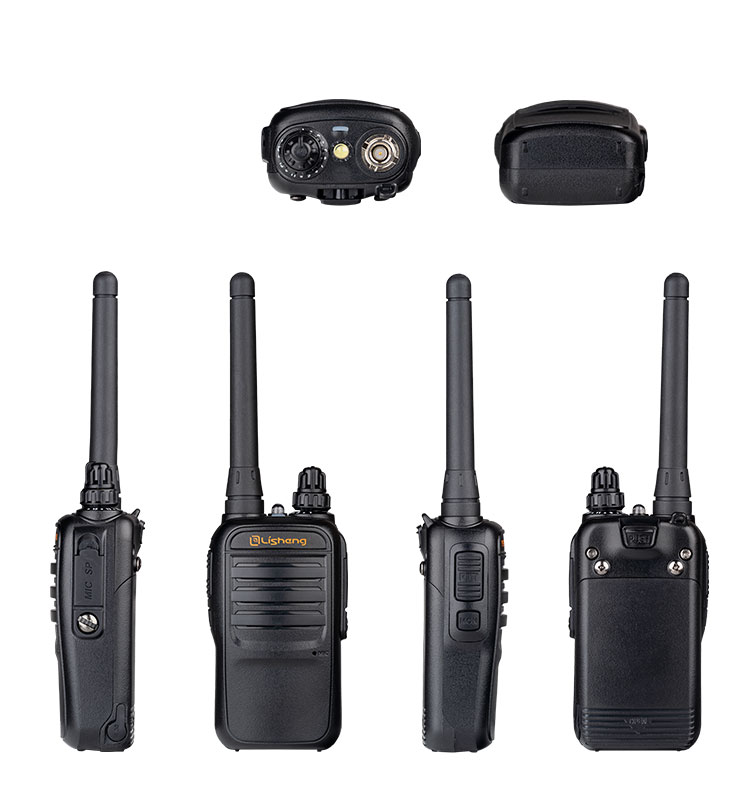

Appearance Introduction
Product Accessories
Antenna
Belt Clip
Battery
Charger
Hand Strap
| General Specifications | |
| Frequency Range |
136-174MHz， 400-470MHz |
| Channel Capacity | 16 |
| Frequency Spacing | 25/12.5kHz |
| Working Voltage | 3.8V |
| Frequency Stability | ±2.5 ppm |
| Operating Temperature Range | -25℃ ～+55℃ |
| Antenna Impedance | 50Ω |
| Dimension(L*W*H) | 102×52.5×32(mm) |
| Weight(With antenna/battery) | 140g |
| Transmitter | |
| Modulation Mode | 16KфF3E/8KфF3E |
| Modulation Limited | ±5kHz/±2.5kHz |
| Audio Distortion | ≤5% |
|
Residual Frequency Modulation |
-40dB/-35dB |
| Adjacent Channel Power | -70dB/-60dB |
|
Spurious and Harmonic Wave |
-36dBm(1GHz -30dBm)1GHz |
| Receiver | |
| Receiving Sensitivity | ≦0.18uV /0.22uV |
|
Adjacent Channels Selectivity |
≥70dB/60dB |
| Inter-modulation | ≥60dB |
| Spurious Response | ≥70dB |
| SNR | ≥45/40dB |
| Audio Output Power | 0.5W |
| Audio Distortion | ≤5% |
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
