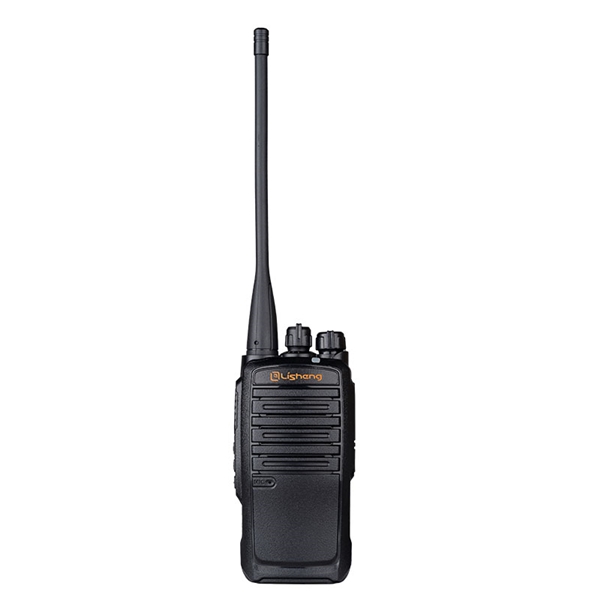

UT88 Analog Mobile Radio
UT88
It is useful business FM Radio, with a nice commercial design, long standby. Its Simple and fast program, easy operation, bring users the instant voice and high price comparison.
Product Orientation Map
Features
Specifications
Accessories
Features

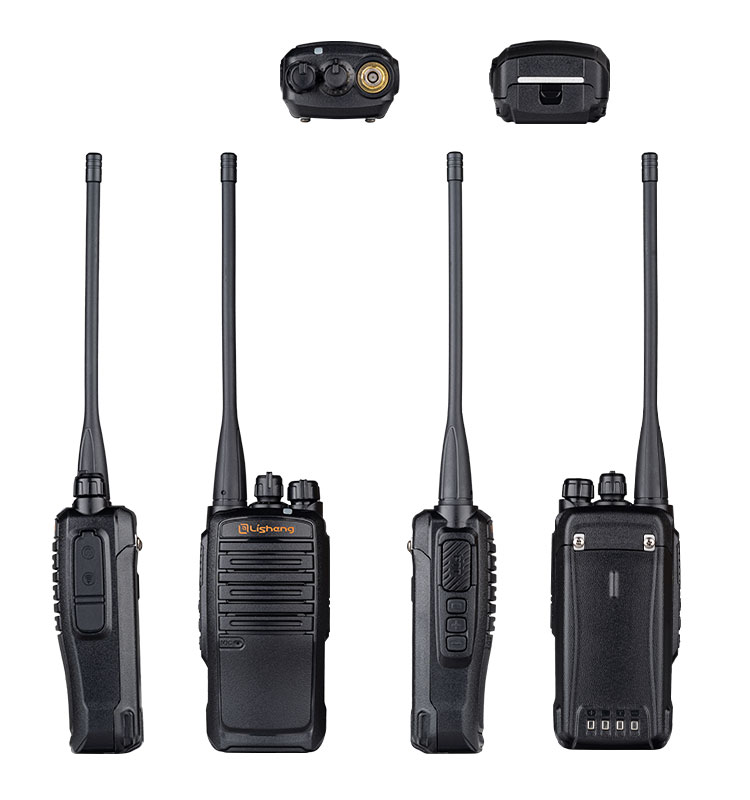

Appearance Introduction
Product Accessories
Antenna
Belt Clip
Hand Strap
Battery
Charger Pod
| General | |
| Frequecy Range | UHF:400-470MHz |
| Channel capacity | 16 |
| Channel interval | 12.5kHz/25KHz |
|
Normal Operating Voltage |
7.4V |
| Battery capacity | 1200mAh |
| Battery life | about 200h |
| Dimension | 111×54.5×32mm |
| Weight | about 238g |
| Display | No display |
| Receiver | |
| RX Sensitivity | ≤0.18uV/0.22uV |
|
Adjacent Channel Selectivity |
≥60dB |
| Block | ≥80dB |
| Inter-modulation | ≥60dB |
|
Spurious Response rejection |
≥70dB |
|
Signal to noise ratio |
≥50dB |
|
Receive audio power |
>0.5W |
| Audio Distortion | ≤5％ |
| Transmitter | |
|
Modulation Mode |
16kΦF3E/8kΦF3E |
|
Modulation Limiting |
±5kHz/ ±2.5kHz |
| Audio Distortion | ≤5% |
| Launch power | ≥4W |
| Residual FM | -45dB |
|
Neighboring power |
-67dB |
|
Miscellaneous and Harmony |
-36dBm (1GHz-30dBm) 1GHz |
| Environmental indicators | |
|
Operating temperature |
-30℃ ~ +60℃ |
|
Storage temperature |
-40℃ ~ +85℃ |
|
Impact and vibration |
According to GJB150-2009 and MIL-STD-810 C/D/E/F/G |
*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.
Product accessories
Antenna
Belt Clip
Hand Strap
Battery
Charger Pod
