LS-V5 Portable FM Radio

LS-V5

It is useful business FM Radio, with a nice commercial design, long standby. Its Simple and fast program, easy operation, bring users the instant voice and high price comparison.

Product Orientation Map

GET A QUOTE

Features

Specifications

Accessories

Features

  • • QT/DQT Asian Audio
  • • Scan add/delete
  • • Broadband/narrowband optional
  • • High power/low power optional
  • • Busy lock
  • • Voice disturbance
  • • voice pressure expansion
  • • Temporary monitoring
  • • A variety of scan modes (carrier scan/time scanning)
  • • VOX sound control
  • • Static level examination
  • • Channel broadcast
  • • Power indication
  • • Ecestated
  • • DTMF send code
  • • Frequency protection
  • • Emergency alarm
  • • The remaining power instructions
  • • Power saving function
  • • Low -voltage alarm function
  • • Limited time launch function (TOT)
  • • frequency jump

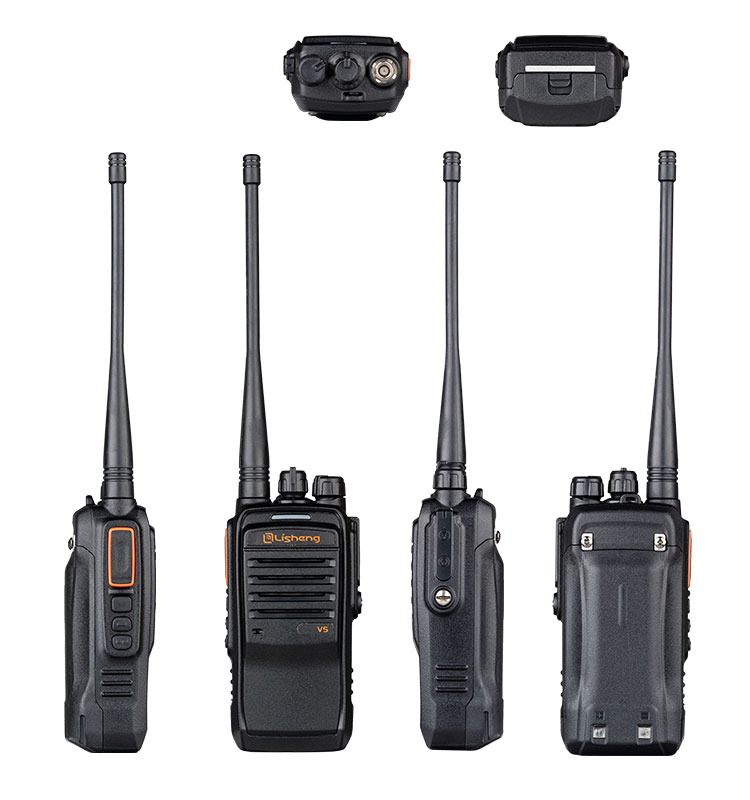

Appearance Introduction




Product Accessories

  • Antenna

    Antenna

  • Belt Clip

    Belt Clip

  • Battery

    Battery

  • Charger Pod

    Charger Pod

  • Hand Strap

    Hand Strap

General
Frequecy Range UHF:400-470MHz
Channel Capacity 16
Channel interval 12.5kHz/25KHz
Normal Operating
Voltage 		7.4V
Battery capacity 1200mAh
Battery life about 200h
Dimension 111×54.5×32mm
Weight(Standard
battery and
antenna) 		about238g
Display No display
Receiver
RX Sensitivity ≤0.18uV/0.22uV
Adjacent Channel
Selectivity 		≥60dB
Block ≥80dB
Inter-modulation ≥60dB
Spurious Response
rejection 		≥70dB
Signal to noise
ratio 		≥50dB
Receive audio
power 		>0.5W
Audio Distortion ≤5％
Transmitter
Modulation
Mode 		16kΦF3E/8kΦF3E
Modulation
Limiting 		±5kHz/±2.5kHz
Audio Distortion ≤5%
Output Power ≥4W
Remaining
frequency
adjustment 		-45dB
Neighboring
power 		-67dB
Miscellaneous
and Harmony 		-36dBm
(1GHz -30dBm)
1GHz
Environmental indicators
Operating
temperature 		-30℃ ~ +60℃
Storage
temperature 		-40℃ ~ +85℃
Impact and
vibration 		According to
GJB 150-2009 and
MIL-STD-810
C/D/E/F/G

*The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above index data are subject to change without notice.

Product accessories

  • Antenna

    Antenna

  • Belt Clip

    Belt Clip

  • Battery

    Battery

  • Charger Pod

    Charger Pod

  • Hand Strap

    Hand Strap
